Convert URL to image with Python and OpenCV

Downloading the OpenCV logo from a URL and converting it to OpenCV format.

Today’s blog post comes directly from my own personal repository of utility functions.

Over the past month I’ve gotten a handful of PyImageSearch readers emailing in and asking how to download an image from a URL and then convert it to OpenCV format (without writing it to disk and then reading it back) — and in this article I’ll show you exactly how do it.

And as a bonus we’ll also see how we can utilize scikit-image to download an image from a URL, along with a common “gotcha” that could trip you up along the way.

Continue reading to learn how to convert a URL to an image using Python and OpenCV.

Looking for the source code to this post?
Jump right to the downloads section.

OpenCV and Python versions:
In order to run this example, you’ll need Python 2.7 and OpenCV 2.4.X.

Method #1: OpenCV, NumPy, and urllib

The first method we’ll explore is converting a URL to an image using the OpenCV, NumPy, and the urllib libraries. Open up a new file, name it url_to_image.py , and let’s get started:

The first thing we’ll do is import our necessary packages. We’ll use NumPy for converting the byte-sequence from the download to a NumPy array, urllib  to perform the actual request, and cv2  for our OpenCV bindings.

We then define our url_to_image  function on Line 7. This function requires a single argument, url , which is the URL of the image we want to download.

Next, we utilize the urllib  library to open a connection to the supplied URL on Line 10. The raw byte-sequence from the request is then converted to a NumPy array on Line 11.

At this point the NumPy array is a 1-dimensional array (i.e. a long list of pixels). To reshape the array into a 2D format, assuming 3 components per pixel (i.e. the Red, Green, and Blue components, respectively), we make a call to cv2.imdecode  on Line 12. Finally, we return the decoded image to the calling function on Line 15.

Alright, time to put this function to work:

Lines 18-21 define a list of image URLs that we are going to download and convert to OpenCV format.

We start looping over each of these URLs on Line 25, make a call to our url_to_image  function on Line 28, and then finally display our downloaded image to our screen on Lines 29 and 30. At this point our image can be manipulated with any other OpenCV functions as we normally would.

To see our work in action, open up a terminal and execute the following command:

If all goes well, you should first see the OpenCV logo:

Figure 1: Downloading the OpenCV logo from a URL and converting it to OpenCV format.

Figure 1: Downloading the OpenCV logo from a URL and converting it to OpenCV format.

And next the Google logo:

Figure 2: Downloading the Google logo from a URL and converting it to OpenCV format.

Figure 2: Downloading the Google logo from a URL and converting it to OpenCV format.

And here’s an example of me demonstrating face detection in my book, Practical Python and OpenCV:

Figure 3: Converting an image URL to OpenCV format with Python.

Figure 3: Converting an image URL to OpenCV format with Python.

Now, let’s move on to the alternative method to downloading an image and converting it to OpenCV format.

Method #2: scikit-image

The second method assumes that you have the scikit-image library installed on your system. Let’s take a look at how we can leverage scikit-image to download an image from a URL and convert it to OpenCV format:

One of the nice aspects of the scikit-image library is that the imread  function in the io  sub-package can tell the difference between a path to an image on disk and a URL (Line 39).

However, there is an important gotcha that can really trip you up!

OpenCV represents images in BGR order — whereas scikit-image represents images in RGB order. If you use the scikit-image imread  function and want to utilize OpenCV functions after downloading the image, you need to take special care to convert the image from RGB to BGR (Line 41).

If you don’t take this extra step, you may obtain incorrect results:

Figure 4: Special care needs to be taken to convert from RGB to BGR when using scikit-image to convert a URL to an image.

Figure 4: Special care needs to be taken to convert from RGB to BGR when using scikit-image to convert a URL to an image. The image on the left is incorrectly specified in the RGB order. The image on the right correctly displays the image after it is converted from RGB to BGR order.

Take a look at the Google logo below to make this point even more clear:

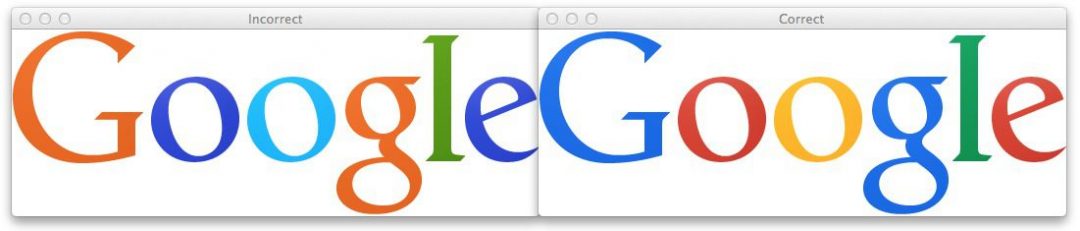

Figure 5: Order matters. Be sure to convert from RGB to BGR order or you might be tracking down a hard-to-find bug.

Figure 5: Order matters. Be sure to convert from RGB to BGR order or you might be tracking down a hard-to-find bug.

So there you have it! Two methods to convert a URL to an image using Python, OpenCV, urllib, and scikit-image.

Summary

In this blog post we learned about two methods to download an image from a URL and convert it to OpenCV format using Python and OpenCV.

The first method is to use the urllib  Python package to download the image, convert it to an array using NumPy, and finally reshape the array using OpenCV to construct our image.

The second method is to use the io.imread  function of scikit-image.

So which method is better?

It all depends on your setup.

If you already have scikit-image installed, I would use the io.imread  function (just don’t forget to convert from RGB to BGR if you are using OpenCV functions). And if you do not have scikit-image installed, I would hand-roll the url_to_image  function detailed at the beginning of this article.

I’ll also be adding this function to the imutils package on GitHub soon.

Downloads:

If you would like to download the code and images used in this post, please enter your email address in the form below. Not only will you get a .zip of the code, I’ll also send you a FREE 11-page Resource Guide on Computer Vision and Image Search Engines, including exclusive techniques that I don’t post on this blog! Sound good? If so, enter your email address and I’ll send you the code immediately!

, ,

17 Responses to Convert URL to image with Python and OpenCV

  1. Captain DeadBones March 13, 2015 at 5:40 pm #

    Great post! Awesome idea.

    • Adrian Rosebrock March 13, 2015 at 6:23 pm #

      I’m glad you enjoyed it! 🙂

  2. newbie September 5, 2015 at 8:20 am #

    Hi,

    Line 41 shouldn’t be cv2.COLOR_RGB2BGR instead of cv2.COLOR_BGR2RGB

    • Adrian Rosebrock September 5, 2015 at 1:30 pm #

      The scikit-image library represents images in RGB order, whereas OpenCV represents images in BGR order. So when you download the image via scikit-image’s io.imread function, your image is in RGB order. Thus, you need to reverse it. This can be done using raw NumPy array functions, or you can (somewhat confusingly) use cv2.COLOR_BGR2RGB to flip the order of the channels. Remember, an image is just a NumPy array and it has no notion or understanding of what color space it is in.

  3. Anon October 29, 2015 at 11:23 am #

    What if there is a password? Like a camera needing simple user/pass authentication.

    Thanks!

    • Adrian Rosebrock November 3, 2015 at 10:36 am #

      That will make things a little more complicated. I would suggest looking into the requests Python library which supports simple authentication.

  4. Inês Martins October 30, 2015 at 10:16 am #

    I tried method #2 and I am getting this error:

    urllib2.HTTPError: HTTP Error 403: Forbidden

    • Adrian Rosebrock November 3, 2015 at 10:28 am #

      If you are getting an error related to urllib2 then the image URL you are requesting is not valid or can not be found. A 403 error is a common error for a server to return.

  5. Luis October 7, 2016 at 12:32 pm #

    What if the image is not available? how could i just ignore such image and continue with next?

    • Adrian Rosebrock October 11, 2016 at 1:16 pm #

      If the image cannot be downloaded you can detect this and catch the exception and move on to the next URL.

  6. judson antu January 26, 2017 at 5:20 am #

    can we do it the opposite way? posting an image as url in a server?

    • Adrian Rosebrock January 26, 2017 at 8:14 am #

      Hi Judson — can you elaborate on what you mean by “posting an image as URL in a server”? I’m not sure what you mean.

      • judson antu January 26, 2017 at 11:49 pm #

        im, sorry if i have confused you. here you have displayed the opencv logo from http/pyimage search……….opencv.png which is a url right? can we post an image in my rpi as a url like this, so that some body else can download this image in their own system?

        • Adrian Rosebrock January 28, 2017 at 6:57 am #

          If you want to take an image and upload it to a server, I would suggest referring to this tutorial.

  7. Kyle Hounslow May 8, 2017 at 1:02 pm #

    My man! Always got what I need.
    I used this to receive and decode images for one of my flask APIs, thank you.
    I’ll reply to this comment with some demo code once finished.
