So in this post, I’m going to show how to perform basic image segmentation using Python and OpenCV.

And we’ll give it a little skateboarding theme as well, just to pay homage to a friend whose memory weighs heavy on my mind.

Looking for the source code to this post?
Jump right to the downloads section.

OpenCV and Python versions:
This example will run on Python 2.7/Python 3.4+ and OpenCV 2.4.X/OpenCV 3.0+.

The cv2.threshold Function

Let’s start by taking a look at the cv2.threshold function signature:

(T, threshImage) = cv2.threshold(src, thresh, maxval, type)

The first parameter is our source image, or the image that we want to perform thresholding on. This image should be grayscale.

The second parameter, thresh, is the threshold value which is used to classify the pixel intensities in the grayscale image.

The third parameter, maxval, is the pixel value used if any given pixel in the image passes the thresh  test.

Finally, the fourth parameter is the thresholding method to be used. The type  value can be any of:

  • cv2.THRESH_BINARY
  • cv2.THRESH_BINARY_INV
  • cv2.THRESH_TRUNC
  • cv2.THRESH_TOZERO
  • cv2.THRESH_TOZERO_INV

Sound complicated? It’s not — I’ll show you examples for each of these thresholding types.

The cv2.threshold  then returns a tuple of two values. The first value, T , is the value that was used for the thresholding. In our case, this will be the same value as thresh  that we pass into the cv2.threshold  function.

The second value is our actual thresholded image.

Anyway, let’s go ahead and explore some code.

Thresholding: Simple Image Segmentation using OpenCV

There are many forms of image segmentation.

Clustering. Compression. Edge detection. Region-growing. Graph partitioning. Watershed. The list goes on.

But in the beginning, there was only the most basic type of image segmentation: thresholding.

Let’s discover how to perform simple image segmentation using OpenCV. Open up your favorite editor, create a file named threshold.py , and let’s get started:

We’ll start by importing the two packages that we’ll need, argparse  and cv2 on Lines 2 and 3.

From there, we’ll parse our command line arguments on Lines 6-11. Here we’ll require two parameters. The first, --image , is the path to the image that we want to threshold. The second, --threshold , is the threshold value that will be passed into the cv2.threshold  function.

From there, we’ll load the image from disk and convert it to grayscale on Lines 14 and 15. We convert to grayscale since cv2.threshold  expects a single channel image.

Lines 18-23 defines our list of thresholding methods.

We loop over our thresholding methods starting on Line 26.

From there, we apply the actual threshold method on Line 28. We pass our grayscale image as the first argument, the command line supplied threshold value as the second argument, 255 (white) as our value for when the threshold test passes as our third argument, and finally the threshold method itself as the final parameter.

Finally, the thresholded image is displayed on Lines 29 and 30.

Let’s look at some results. Open up your terminal, navigate to our code directory, and execute the following command:

In this example we are using a value of 245 for our threshold test. If a pixel in the input image passes the threshold test, it will have the value set to 255.

Now, let’s take a look at the results:

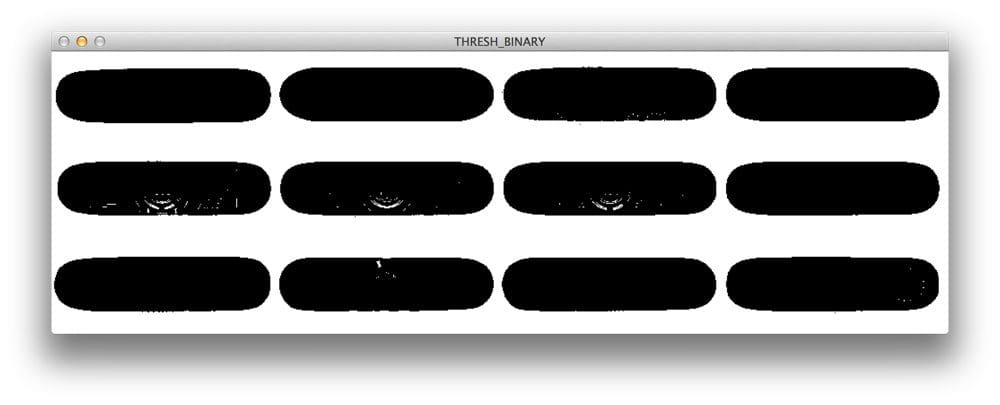

Figure 1: Applying cv2.threshold with cv2.THRESH_BINARY.

Figure 1: Applying cv2.threshold with cv2.THRESH_BINARY.

Using cv2.THRESH_BINARY  the skateboards are segmented to be black with a white background.

To invert the colors, just use cv2.THRESH_BINARY_INV , as seen below:

Figure 2: Applying cv2.threshold with cv2.THRESH_BINARY_INV.

Figure 2: Applying cv2.threshold with cv2.THRESH_BINARY_INV.

Not bad. What else can we do?

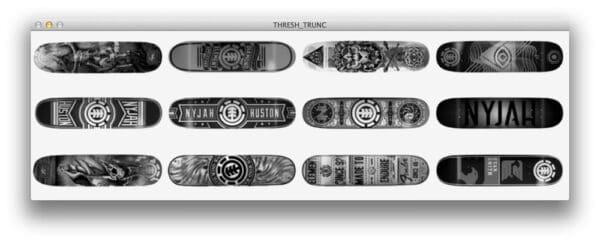

Figure 3: Applying cv2.threshold with cv2.THRESH_TRUNC.

Figure 3: Applying cv2.threshold with cv2.THRESH_TRUNC.

Using cv2.THRESH_TRUNC  leaves the pixel intensities as they are if the source pixel is not greater than the supplied threshold.

Then we have cv2.THRESH_TOZERO  which sets the source pixel to zero if the source pixel is not greater than the supplied threshold:

Figure 4: Applying cv2.threshold with cv2.THRESH_TOZERO.

Figure 4: Applying cv2.threshold with cv2.THRESH_TOZERO.

Finally, we can invert this behavior as well using cv2.THRESH_TOZERO_INV :

Figure 5: Applying cv2.threshold with cv2.THRESH_TOZERO_INV.

Figure 5: Applying cv2.threshold with cv2.THRESH_TOZERO_INV.

Nothing to it!

Summary

In this blog post I showed you how to perform the most basic form of image segmentation: thresholding.

To perform thresholding we utilized the cv2.threshold  function.

OpenCV provides us with five basic thresholding methods, including:  cv2.THRESH_BINARYcv2.THRESH_BINARY_INVcv2.THRESH_TRUNCcv2.THRESH_TOZEROcv2.THRESH_TOZERO_INV .

Most importantly, be sure to play around with the thresh  value as it will give different results depending on what value you supply.

In future posts, I’ll show you how to automatically determine the threshold value, no parameter tuning required!
