Removing contours from an image using Python and OpenCV

remove_contours_header

Awhile back I was going through /r/computervision when I stumbled across a question asking how to remove contours from an image using OpenCV.

Intrigued, I posted a reply. The basic algorithm for removing contours from an image goes something like this:

  • Step 1: Detect and find contours in your image.
  • Step 2: Loop over contours individually.
  • Step 3: Determine if the contour is “bad” and should be removed according to some criterion.
  • Step 4: Accumulate a mask of “bad” contours to be removed.
  • Step 5: Apply the accumulated mask of bad contours to the original image using a bitwise ‘and’.

And that’s it!

The algorithm itself is very straightforward, the main step that you need to pay attention to and consider is Step 3, determining if a contour should be removed.

This step could be very simple — or it also could be quite hard, it really depends on your application. And while it’s impossible for me to guess the criterion as to why you want to remove a contoured region from an image, the remainder of this blog post will demonstrate a toy example that you can use to remove contours from an image. From here, you’ll be able to take this code and modify the contour removal criterion according to your own needs.

Looking for the source code to this post?
Jump right to the downloads section.

OpenCV and Python versions:
This example will run on Python 2.7/Python 3.4+ and OpenCV 2.4.X.

Removing contours from an image using Python and OpenCV

shapes

Figure 1: Our example toy image. Our goal is to remove all circles/ellipses while retaining the rectangles.

In this toy example our goal is to remove the circles/ellipses from the image above while retaining the rectangles. We’ll accomplish this by applying a test to every contour to determine if it should be removed or not.

Anyway, let’s go ahead and get this example started. Open up a new file, name it remove_contours.py , and let’s get coding:

The first thing we’ll do is import our necessary packages. We’ll use NumPy for numerical processing and cv2  for our OpenCV bindings.

We then define our is_contour_bad  function on Line 6. This function handles the implementation of Step 3 above and defines the criterion under which a contour should be marked as “bad” and removed from an image.

The  is_contour_bad  function requires a single argument, c , which is the contour we are going to test to determine if it should be removed or not.

Remember, in our toy example image above, our goal is to remove the circles/ellipses, while keeping the rectangles intact.

So let’s take a second to consider if we can exploit the geometry of this problem.

A rectangle has 4 sides. And a circle has no sides.

So if we approximate the contour and then examine the number of points within the approximated contour, we’ll be able to determine if the contour is a square or not!

And that’s exactly what Lines 7-11 do. We first approximate the contour on Lines 8 and 9, while Line 12 returns a boolean, indicating whether the contour should be removed or not. In this case, the contour will be kept if the approximation has 4 points (vertices), indicating that the contour is a rectangle.

Let’s finish implementing the other steps to solve this problem:

In order to find and detect the contours in our image (Step 1), we preprocess our image on Lines 16-19 by loading it from disk, converting it to grayscale and detecting edges.

Finding the actual contours happens on Line 23 by making a call to cv2.findContours . Subsequently we handle grabbing contours with different versions of OpenCV (Line 24).

We then initialize a mask  on Line 25 to store our accumulated “bad” contours. We’ll be using this mask along with bitwise operations later on in the code to perform the actual removal of the contour.

Now we can move on to Step 2, looping over the individual contours which happens on Line 28.

For each of the contours we make a call to is_contour_bad  on Line 30, and if the contour is indeed “bad”, then we accumulate our contours to be removed on Line 31 by drawing the contour on our mask.

Finally, all we have to do is apply a bitwise ‘and’ to the image using the accumulated mask to remove the contours on Line 34Lines 35-37 then display our results.

Results

To execute our script, just issue the following command:

First, you’ll see our mask of accumulated contours that will be removed:

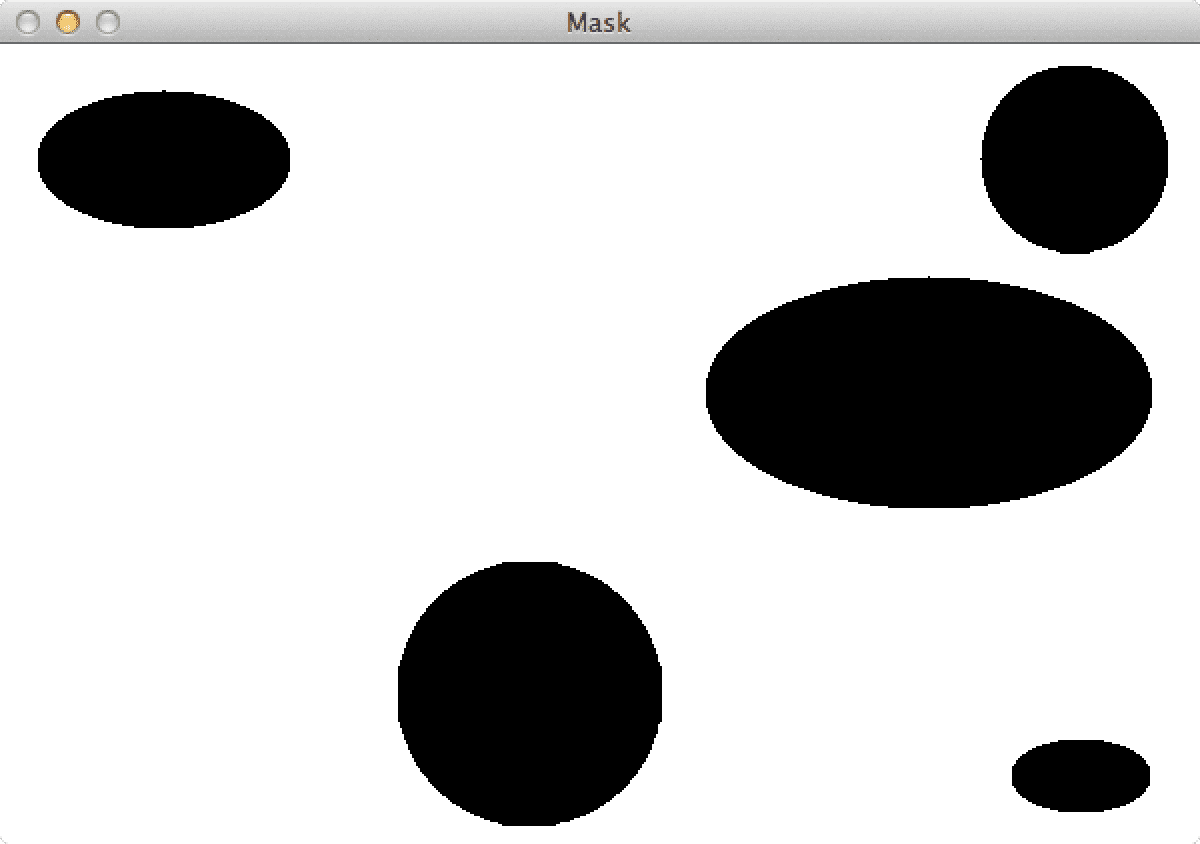

Figure 2: Our accumulated mask of contours to be removed. Shapes to be removed appear as black whereas the regions of the image to be retained are white.

Figure 2: Our accumulated mask of contours to be removed. Shapes to be removed appear as black whereas the regions of the image to be retained are white.

Notice how the contours appear as black shapes on a white background. This is because the black shapes will be removed from the original image while the white regions will be retained once we apply the cv2.bitwise_and  function.

And here is the output after applying the accumulated mask:

Figure 3: We have successfully removed the circles/ellipses while retaining the rectangles.

Figure 3: We have successfully removed the circles/ellipses while retaining the rectangles.

Clearly we have removed the circles/ellipses from the image while retaining the rectangles!

Summary

In this blog post I showed you how to remove contoured regions from an image using Python and OpenCV. Removing contours from an image is extremely straightforward and can be accomplished using the following 5 steps:

  1. Detecting and finding the contours in an image.
  2. Looping over each of the contours individually.
  3. Applying a “test” of some sort to determine if the contour should be removed.
  4. Accumulating a mask of contours to be removed.
  5. Applying the mask to the original image.

To apply this algorithm to your own images you’ll need to take a second and consider Step 3 and determine the criterion you are using to remove contours. From there, you can apply the rest of the algorithm as-is.

Downloads:

If you would like to download the code and images used in this post, please enter your email address in the form below. Not only will you get a .zip of the code, I’ll also send you a FREE 17-page Resource Guide on Computer Vision, OpenCV, and Deep Learning. Inside you'll find my hand-picked tutorials, books, courses, and libraries to help you master CV and DL! Sound good? If so, enter your email address and I’ll send you the code immediately!
