Today’s blog post will build on what we learned from last week: how to construct an image scraper using Python + Scrapy to scrape ~4,000 Time magazine cover images.
So now that we have this dataset, what are we going to do with it?
Great question.
One of my favorite visual analysis techniques to apply when examining these types of homogenous datasets is to simply average the images together over a given temporal window (i.e. timeframe). This average is a straightforward operation. All we need to do is loop over every image in our dataset (or subset) and maintain the average pixel intensity value for every (x, y)-coordinate.
By computing this average, we can obtain a singular representation of what the image data (i.e. Time magazine covers) looks like over a given timeframe. It’s a simple, yet highly effective method when exploring visual trends in a dataset.
In the remainder of this blog post, we’ll group our Time magazine cover dataset into 10 groups — one group for each of the 10 decades Time magazine has been in publication. Then, for each of these groups, we’ll compute the average of all images in the group, giving us a single visual representation of how the Time cover images looked. This average image will allow us to identify visual trends in the cover images; specifically, marketing and advertising techniques used by Time during a given decade.
Analyzing 91 years of Time magazine covers for visual trends
Before we dive into this post, it might be helpful to read through our previous lesson on scraping Time magazine cover images — reading the previous post is certainly not a requirement, but does help in giving some context.
That said, let’s go ahead and get started. Open up a new file, name it analyze_covers.py , and let’s get coding:
# import the necessary packages
from __future__ import print_function
import numpy as np
import argparse
import json
import cv2
def filter_by_decade(decade, data):
# initialize the list of filtered rows
filtered = []
# loop over the rows in the data list
for row in data:
# grab the publication date of the magazine
pub = int(row["pubDate"].split("-")[0])
# if the publication date falls within the current decade,
# then update the filtered list of data
if pub >= decade and pub < decade + 10:
filtered.append(row)
# return the filtered list of data
return filtered
Lines 2-6 simply import our necessary packages — nothing too exciting here.
We then define a utility function, filter_by_decade on Line 8. As the name suggests, this method will go through our scraped cover images and pull out all covers that fall within a specified decade. Our filter_by_decade function requires two arguments: the decade we want to grab cover images for, along with data , which is simply the output.json data from our previous post.
Now that our method is defined, let’s move on to the body of the function. We’ll initialize filtered , a list of rows in data that match our decade criterion (Line 10).
We then loop over each row in the data (Line 13), extract the publication date (Line 15), and then update our filtered list, provided that the publication date falls within our specified decade (Lines 19 and 20).
Finally, the filtered list of rows is returned to the caller on Line 23.
Now that our helper function is defined, let’s move on to parsing command line arguments and loading our output.json file:
# construct the argument parse and parse the arguments
ap = argparse.ArgumentParser()
ap.add_argument("-o", "--output", required=True,
help="path to output visualizations directory")
args = vars(ap.parse_args())
# load the JSON data file
data = json.loads(open("output.json").read())
Again, here the code is quite simple. Lines 26-29 handle parsing command line arguments. We only need a single switch here, --visualizations , which is the path to the directory where we will store our average cover images for each decade between 1920 and 2010.
We then load the output.json file on Line 32 (again, which was generated from our previous post on scraping images with Python + Scrapy).
We are now ready to perform the actual analysis on the Time magazine cover dataset:
# loop over each individual decade Time magazine has been published
for decade in np.arange(1920, 2020, 10):
# initialize the magazine covers list
print("[INFO] processing years: {}-{}".format(decade, decade + 9))
covers = []
# loop over the magazine issues belonging to the current decade
for row in filter_by_decade(decade, data):
# load the image
cover = cv2.imread("output/{}".format(row["files"][0]["path"]))
# if the image is None, then there was an issue loading it
# (this happens for ~3 images in the dataset, likely due to
# a download problem during the scraping process)
if cover is not None:
# resize the magazine cover, flatten it into a single
# list, and update the list of covers
cover = cv2.resize(cover, (400, 527)).flatten()
covers.append(cover)
# compute the average image of the covers then write the average
# image to disk
avg = np.average(covers, axis=0).reshape((527, 400, 3)).astype("uint8")
p = "{}/{}.png".format(args["output"], decade)
cv2.imwrite(p, avg)
We start by looping over each decade between 1920 and 2010 on Line 35 and initialize a list, covers , to store the actual cover images for the current decade .
For each of decade, we need to pull out all rows from output.json that fall within the decade range. Luckily, this is quite easy since we have our filter_by_decade method defined above.
The next step is to load the current cover image from disk on Line 43. If the image is None , then we know there was an issue loading the cover from disk — this happens for about 3 images in the dataset, which is likely due to a download problem or a network issue during the scraping process.
Provided that the cover is not None , we we need to resize it to a canonical, known size so we can compute the average of each pixel location (Line 51). Here we resize the image to be a fixed 400 x 527 pixels, ignoring the aspect ratio — the resized image is then flattened into a list of 400 x 527 x 3= 632,400 pixels (the 3 comes from the Red, Green, and Blue channels of the image). If we do not resize the cover to a fixed size, then our rows will not line up and we will be unable to compute the average image for the decade range.
The flattened cover is then accumulated into the covers list on Line 52.
The actual true “analysis” of the decade’s worth of cover images takes place on Line 56 using the np.average function. Every Time magazine cover image is represented by a flattened row in the covers list. Therefore, to compute the average of all covers across a decade, all we need to do is take the mean pixel value of each column. This will leave us with a single list (again, of 632,400-dim), representing the mean value of each Red, Green, and Blue pixel at each (x, y)-coordinate.
However, since the avg image is represented as 1D list of floating point values, we cannot visualize it. First, we need to reshape the avg image to have a width of 400 pixels, a height of 527 pixels, and a depth of 3 (for each of the Red, Green, and Blue channels, respectively). Finally, since OpenCV expects 8-bit, unsigned integers, we’ll go ahead and convert to uint8 from the float data type returned from np.average .
Finally, Lines 57 and 58 take our avg cover image and write it to disk.
To run our script just execute the following command:
$ python analyze_covers.py --output visualizations

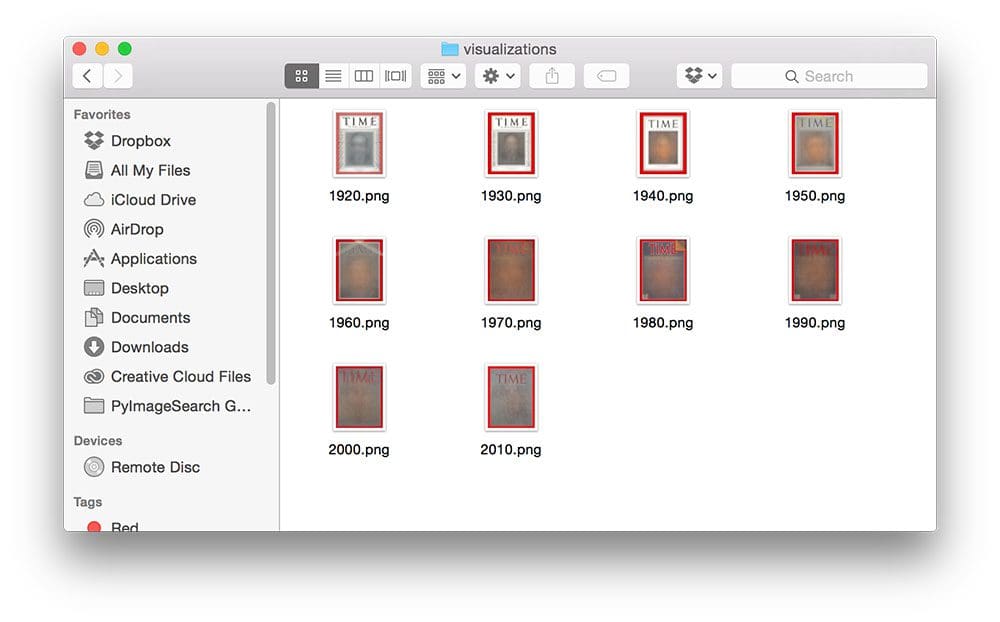

After a few seconds, you should see the following images in your visualizations directory:
Results
We now have 10 images in our visualizations directory, an average each for each of the 10 decades Time magazine has been in publication.
But what do these visualizations actually mean? And what types of insights can we gain from examining them?
As it turns out, quite a lot — especially with respect to how Time performed marketing and advertising with their covers over the past 90+ years:
- Originally, the cover of Time magazine was ALL black and white. But in the late 1920’s the we can see they started to transfer over to the now iconic red border. However, all other aspects of the cover (including the portrait centerpiece) are still in black and white.
- The Time logo always appears at the top of the cover.
- Ornate designs frame the cover portrait on the left and right.
- Time is now fully committed to their red border, which has actually grown in thickness slightly.
- Overall, not much as changed in the design from the 1920’s to the 1930’s.
- The first change we notice is that the red border is not the only color! The portrait of the cover subject is starting to be printed in color. Given that there seems to be a fair amount of color in the portrait region, this change likely took place in the early 1940’s.
- Another subtle alternation is the change in “The Weekly News Magazine” typography directly underneath the “TIME” text.
- It’s also worth noting that the “TIME” text itself is substantially more fixed (i.e. very little variation in placement) as opposed to previous decades.
- The 1950’s cover images demonstrate a dramatic change in Time magazine, both in terms of cover format and marketing and advertising.
- To start, the portrait, once framed by a white border/ornate designs is now expanded to blanket the entire cover — a trend that continues to the modern day.
- Meta-information (such as the name of the issue and publication date) have always been published on the magazine covers; however, we are now starting to see a very fixed and highly formatted version of this meta-information in the four corners of the magazine.
- Most notable is the change in marketing and advertising by using diagonal yellow bars to highlight the cover story of the issue.
- The first thing you’ll notice about the 1960’s Time cover is a change in the “TIME” text. While the text appears to be purple, it’s actually a transition from black to red (which averages out to be a purple-ish color). All previous decades of Time used black text for their logo, but in the 1960’s we can see that they converted to their now modern day red.
- Secondly, you’ll see that the “TIME” text is highlighted with a white border which is used to give contrast between the logo and the centerpiece.
- Time is still using diagonal bars for marketing, allowing them to highlight the cover story — but the bars are now more “white” than they are yellow”. The width of the bars has also been slimmed down by 1/3.
- Here we see another big change in marketing and advertising strategy — Time is starting to use faux page folds (top-right corner), allowing us to get a “sneak peek” of what’s inside the issue.
- Also note the barcode that is starting to appear in the bottom-left corner of the issue.
- The white border surrounding the “TIME” text has been removed.
- The 1980’s issues of Time seem to continue the same faux page fold marketing strategy from the 1970’s.
- They also have re-inserted the white border surrounding the “TIME” text.
- A barcode is now predominately used in the bottom-left corner.
- But also note that a barcode is starting to appear in the bottom-right corner as well.
- Once again, the white border surrounding “TIME” is gone — it makes me curious what types of split tests they were running during these years to figure out if the white border contributed to more sales of the magazine.
- The barcode now consistently appears on the bottom-left and bottom-right corners of the magazine, the choice of barcode placement being highly dependent on aesthetics.
- Also notice that the faux page fold which, which survived nearly two decades, is now gone.
- Lastly, note how the “TIME” logo has become quite variable in size.
- The variable logo size has become more pronounced in the 2000’s era.
- We can also see the barcode is completely gone.
- We now arrive at the modern day Time magazine cover.
- Overall, there isn’t much difference between the 2010’s and 2000’s.
- However, the size of the Time logo itself seems to be substantially less varied, and only fluctuates along the y-axis.
What's next? We recommend PyImageSearch University.
84 total classes • 114+ hours of on-demand code walkthrough videos • Last updated: February 2024
★★★★★ 4.84 (128 Ratings) • 16,000+ Students Enrolled
I strongly believe that if you had the right teacher you could master computer vision and deep learning.
Do you think learning computer vision and deep learning has to be time-consuming, overwhelming, and complicated? Or has to involve complex mathematics and equations? Or requires a degree in computer science?
That’s not the case.
All you need to master computer vision and deep learning is for someone to explain things to you in simple, intuitive terms. And that’s exactly what I do. My mission is to change education and how complex Artificial Intelligence topics are taught.
If you're serious about learning computer vision, your next stop should be PyImageSearch University, the most comprehensive computer vision, deep learning, and OpenCV course online today. Here you’ll learn how to successfully and confidently apply computer vision to your work, research, and projects. Join me in computer vision mastery.
Inside PyImageSearch University you'll find:
- ✓ 84 courses on essential computer vision, deep learning, and OpenCV topics
- ✓ 84 Certificates of Completion
- ✓ 114+ hours of on-demand video
- ✓ Brand new courses released regularly, ensuring you can keep up with state-of-the-art techniques
- ✓ Pre-configured Jupyter Notebooks in Google Colab
- ✓ Run all code examples in your web browser — works on Windows, macOS, and Linux (no dev environment configuration required!)
- ✓ Access to centralized code repos for all 536+ tutorials on PyImageSearch
- ✓ Easy one-click downloads for code, datasets, pre-trained models, etc.
- ✓ Access on mobile, laptop, desktop, etc.
Summary
In this blog post we explored our Time magazine cover dataset which we gathered in the previous lesson.
To perform a visual analysis of the dataset and identify trends and changes in the magazine covers, we averaged covers together across multiple decades. Given the ten decades Time has been in publication, this left us with ten separate visual representations.
Overall, the changes in covers may seem subtle, but they are actually quite insightful to how the magazine has evolved, specifically in regards to marketing and advertising.
The changes in:
- Logo color and white bordering
- Banners to highlight the cover story
- And faux page folds
Clearly demonstrate that Time magazine was trying to determine which strategies were “eye catching” enough for readers to grab a copy off their local newsstand.
Furthermore, their flip-flopping between white bordering and no white bordering indicates to me that they were performing a series of split tests, accumulating decades worth of data, that eventually resulted in their current, modern day logo.
