Deep learning on the Raspberry Pi with OpenCV

I’ve received a number of emails from PyImageSearch readers who are interested in performing deep learning in their Raspberry Pi. Most of the questions go something like this:

Hey Adrian, thanks for all the tutorials on deep learning. You’ve really made deep learning accessible and easy to understand. I have a question: Can I do deep learning on the Raspberry Pi? What are the steps?

And almost always, I have the same response:

The question really depends on what you mean by “do”. You should never be training a neural network on the Raspberry Pi — it’s far too underpowered. You’re much better off training the network on your laptop, desktop, or even GPU (if you have one available).

That said, you can deploy efficient, shallow neural networks to the Raspberry Pi and use them to classify input images.

Again, I cannot stress this point enough:

You should not be training neural networks on the Raspberry Pi (unless you’re using the Pi to do the “Hello, World” equivalent of neural networks — but again, I would still argue that your laptop/desktop is a better fit).

With the Raspberry Pi there just isn’t enough RAM.

The processor is too slow.

And in general it’s not the right hardware for heavy computational processes.

Instead, you should first train your network on your laptop, desktop, or deep learning environment.

Once the network is trained, you can then deploy the neural network to your Raspberry Pi.

In the remainder of this blog post I’ll demonstrate how we can use the Raspberry Pi and pre- trained deep learning neural networks to classify input images.

Looking for the source code to this post?
Jump right to the downloads section.

Deep learning on the Raspberry Pi with OpenCV

When using the Raspberry Pi for deep learning we have two major pitfalls working against us:

  1. Restricted memory (only 1GB on the Raspberry Pi 3).
  2. Limited processor speed.

This makes it near impossible to use larger, deeper neural networks.

Instead, we need to use more computationally efficient networks with a smaller memory/processing footprint such as MobileNet and SqueezeNet. These networks are more appropriate for the Raspberry Pi; however, you need to set your expectations accordingly — you should not expect blazing fast speed.

In this tutorial we’ll specifically be using SqueezeNet.

What is SqueezeNet?

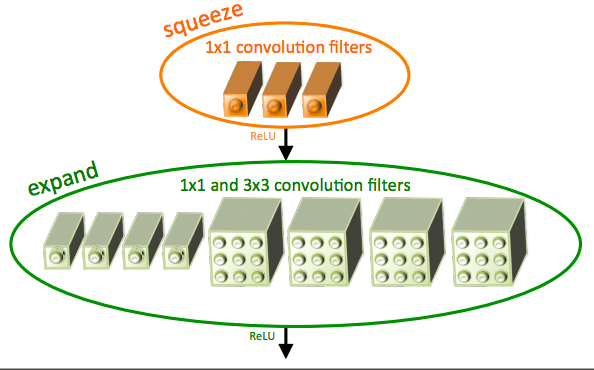

Figure 1: The “fire” module in SqueezeNet, consisting of a “squeeze” and an “expand” (Iandola et al., 2016).

SqueezeNet was first introduced by Iandola et al. in their 2016 paper, SqueezeNet: AlexNet-level accuracy with 50x few parameters and <0.5MB model size.

The title alone of this paper should pique your interest.

State-of-the-art architectures such as ResNet have model sizes that are >100MB. VGGNet is over 550MB. AlexNet sits in the middle of this size range with a model size of ~250MB.

In fact, one of the smaller Convolutional Neural Networks used for image classification is GoogLeNet at ~25-50MB (depending on which version of the architecture is implemented).

The real question is: Can we go smaller?

As the work of Iandola et al. demonstrates, the answer is: Yes, we can decrease model size by applying a novel usage of 1×1 and 3×3 convolutions, along with no fully-connected layers. The end result is a model weighing in at 4.9MB, which can be further reduced to < 0.5MB by model processing (also called “weight pruning” and “sparsifying a model”).

In the remainder of this tutorial I’ll be demonstrating how SqueezeNet can classify images in approximately half the time of GoogLeNet, making it a reasonable choice when applying deep learning on your Raspberry Pi.

Interested in learning more about SqueezeNet?

If you’re interested in learning more about SqueezeNet, I would encourage you to take a look at my new book, Deep Learning for Computer Vision with Python.

Inside the ImageNet Bundle, I:

  1. Explain the inner workings of the SqueezeNet architecture.
  2. Demonstrate how to implement SqueezeNet by hand.
  3. Train SqueezeNet from scratch on the challenging ImageNet dataset and replicate the original results by Iandola et al.

Go ahead and take a look — I think you’ll agree with me when I say that this is the most complete deep learning + computer vision education you can find online.

Running a deep neural network on the Raspberry Pi

The source code from this blog post is heavily based on my previous post, Deep learning with OpenCV.

I’ll still review the code in its entirety here; however, I would like to refer you over to the previous post for a complete and exhaustive review.

To get started, create a new file named pi_deep_learning.py , and insert the following source code:

Lines 2-5 simply import our required packages.

From there, we need to parse our command line arguments:

As is shown on Lines 9-16 we have four required command line arguments:

  • --image : The path to the input image.
  • --prototxt: The path to a Caffe prototxt file which is essentially a plaintext configuration file following a JSON-like structure. I cover the anatomy of Caffe projects in my PyImageSearch Gurus course.
  • --model : The path to a pre-trained Caffe model. As stated above, you’ll want to train your model on hardware which packs much more punch than the Raspberry Pi — we can, however, leverage a small, pre-existing model on the Pi.
  • --labels : The path to class labels, in this case ImageNet “syn-sets” labels.

Next, we’ll load the class labels and input image from disk:

Go ahead and open synset_words.txt  found in the “Downloads” section of this post. You’ll see on each line/row there is an ID and class labels associated with it (separated by commas).

Lines 20 and 21 simply read in the labels file line-by-line ( rows ) and extract the first relevant class label. The result is a classes  list containing our class labels.

Then, we utilize OpenCV to load the image on Line 24.

Now we’ll make use of OpenCV 3.3’s Deep Neural Network (DNN) module to convert the image  to a blob  as well as to load the model from disk:

Be sure to make note of the comment preceding our call to cv2.dnn.blobFromImage  on Line 31 above.

Common choices for width and height image dimensions inputted to Convolutional Neural Networks include 32 × 32, 64 × 64, 224 × 224, 227 × 227, 256 × 256, and 299 × 299. In our case we are pre-processing (normalizing) the image to dimensions of 227 x 227 (which are the image dimensions SqueezeNet was trained on) and performing a scaling technique known as mean subtraction. I discuss the importance of these steps in my book.

Note: You’ll want to use 224 x 224 for the blob size when using SqueezeNet and 227 x 227 for GoogLeNet to be consistent with the prototxt definitions.

We then load the network from disk on Line 35 by utilizing our prototxt  and model  file path references.

In case you missed it above, it is worth noting here that we are loading a pre-trained model. The training step has already been performed on a more powerful machine and is outside the scope of this blog post (but covered in detail in both PyImageSearch Gurus and Deep Learning for Computer Vision with Python).

Now we’re ready to pass the image through the network and look at the predictions:

To classify the query blob , we pass it forward through the network (Lines 39-42) and print out the amount of time it took to classify the input image (Line 43).

We can then sort the probabilities from highest to lowest (Line 47) while grabbing the top five predictions  (Line 48).

The remaining lines (1) draw the highest predicted class label and corresponding probability on the image, (2) print the top five results and probabilities to the terminal, and (3) display the image to the screen:

We draw the top prediction and probability on the top of the image (Lines 53-57) and display the top-5 predictions + probabilities on the terminal (Lines 61 and 62).

Finally, we display the output image on the screen (Lines 65 and 66). If you are using SSH to connect with your Raspberry Pi this will only work if you supply the -X  flag for X11 forwarding when SSH’ing into your Pi.

To see the results of applying deep learning on the Raspberry Pi using OpenCV and Python, proceed to the next section.

Raspberry Pi and deep learning results

We’ll be benchmarking our Raspberry Pi for deep learning against two pre-trained deep neural networks:

  • GoogLeNet
  • SqueezeNet

As we’ll see, SqueezeNet is much smaller than GoogLeNet (5MB vs. 25MB, respectively) and will enable us to classify images substantially faster on the Raspberry Pi.

To run pre-trained Convolutional Neural Networks on the Raspberry Pi use the “Downloads” section of this blog post to download the source code + pre-trained neural networks + example images.

From there, let’s first benchmark GoogLeNet against this input image:

Figure 3: A “barbershop” is correctly classified by both GoogLeNet and Squeezenet using deep learning and OpenCV.

As we can see from the output, GoogLeNet correctly classified the image as “barbershop” in 1.7 seconds:

Let’s give SqueezeNet a try:

SqueezeNet also correctly classified the image as “barbershop”

…but in only 0.9 seconds!

As we can see, SqueezeNet is significantly faster than GoogLeNet — which is extremely important since we are applying deep learning to the resource constrained Raspberry Pi.

Let’s try another example with SqueezeNet:

Figure 4: SqueezeNet correctly classifies an image of a cobra using deep learning and OpenCV on the Raspberry Pi.

However, while SqueezeNet is significantly faster, it’s less accurate than GoogLeNet:

Figure 5: A jellyfish is incorrectly classified by SqueezNet as a bubble.

Here we see the top prediction by SqueezeNet is “bubble”. While the image may appear to have bubble-like characteristics, the image is actually of a “jellyfish” (which is the #2 prediction from SqueezeNet).

GoogLeNet on the other hand correctly reports “jellyfish” as the #1 prediction (with the sacrifice of processing time):

Summary

Today, we learned how to apply deep learning on the Raspberry Pi using Python and OpenCV.

In general, you should:

  1. Never use your Raspberry Pi to train a neural network.
  2. Only use your Raspberry Pi to deploy a pre-trained deep learning network.

The Raspberry Pi does not have enough memory or CPU power to train these types of deep, complex neural networks from scratch.

In fact, the Raspberry Pi barely has enough processing power to run them — as we’ll find out in next week’s blog post you’ll struggle to get a reasonable frames per second for video processing applications.

If you’re interested in embedded deep learning on low cost hardware, I’d consider looking at optimized devices such as NVIDIA’s Jetson TX1 and TX2. These boards are designed to execute neural networks on the GPU and provide real-time (or as close to real-time as possible) classification speed.

In next week’s blog post, I’ll be discussing how to optimize OpenCV on the Raspberry Pi to obtain performance gains by upwards of 100% for object detection using deep learning.

To be notified when this blog post is published, just enter your email address in the form below!

Downloads:

If you would like to download the code and images used in this post, please enter your email address in the form below. Not only will you get a .zip of the code, I’ll also send you a FREE 11-page Resource Guide on Computer Vision and Image Search Engines, including exclusive techniques that I don’t post on this blog! Sound good? If so, enter your email address and I’ll send you the code immediately!

, , , , ,
