Getting started with the Intel Movidius Neural Compute Stick

Let me ask you three questions:

  1. What if you could could run state-of-the-art neural networks on a USB stick?
  2. What if you could see over 10x performance on this USB stick compared to your CPU?
  3. And what if this entire device costs under $100?

Sound interesting?

Enter Intel’s Movidius Neural Compute Stick (NCS).

Raspberry Pi users will especially welcome the device as it can dramatically improve upon image classification and object detection speeds and capabilities. You may find that the Movidius is “just what you needed” to speedup network inference time in (1) a small form factor and (2) a good price.

Inside today’s post we’ll discuss:

  • What the Movidius Neural Compute Stick is capable of
  • If you should buy one
  • How to quickly and easily get up and running with the Movidius
  • Benchmarks comparing network inference times on a MacBook Pro and Raspberry Pi

Next week I’ll provide additional benchmarks and object detection scripts using the Movidius as well.

To get started with the Intel Movidius Neural Compute Stick and to learn how you can deploy a CNN model to your Raspberry Pi + NCS, just keep reading.

Looking for the source code to this post?
Jump right to the downloads section.

Getting started with the Intel Movidius Neural Compute Stick

Today’s blog post is broken into five parts.

First, I’ll answer:

What is the Intel Movidius Neural Compute Stick and should I buy one?

From there I’ll explain the workflow of getting up and running with the Movidius Neural Compute Stick. The entire process is relatively simple, but it needs to be spelled out so that we understand how to work with the NCS

We’ll then setup our Raspberry Pi with the NCS in API-only mode. We’ll also do a quick sanity check to ensure we have communication to the NCS.

Next up, I’ll walk through my custom Raspberry Pi + Movidius NCS image classification benchmark script. We’ll be using SqueezeNet, GoogLeNet, and AlexNet.

We’ll wrap up the blog post by comparing benchmark results.

What is the Intel Movidius Neural Compute Stick?

Intel’s Neural Compute Stick is a USB-thumb-drive-sized deep learning machine.

You can think of the NCS like a USB powered GPU, although that is quite the overstatement — it is not a GPU, and it can only be used for prediction/inference, not training.

I would actually classify the NCS as a coprocessor. It’s got one purpose: running (forward-pass) neural network calculations. In our case, we’ll be using the NCS for image classification.

The NCS should not be used for training a neural network model, rather it is designed for deployable models. Since the device is meant to be used on single board computers such as the Raspberry Pi, the power draw is meant to be minimal, making it inappropriate for actually training a network.

So now you’re wondering: Should I buy the Movidius NCS?

At only $77 dollars, the NCS packs a punch. You can buy the device on Amazon or at any of the retailers listed on Intel’s site.

Under the hood of the NCS is a Myriad 2 processor (28 nm) capable of 80-150 GFLOPS performance. This processor is also known as a Vision Processing Unit (or vision accelerator) and it consumes only 1W of power (for reference, the Raspberry Pi 3 B consumes 1.2W with HDMI off, LEDs off, and WiFi on).

Whether buying the NCS is worth it to you depends on the answers to several questions:

  1. Do you have an immediate use case or do you have $77 to burn on another toy?
  2. Are you willing to deal with the growing pains of joining a young community? While certainly effective, we don’t know if these “vision processing units” are here to stay.
  3. Are you willing to devote a machine (or VM) to the SDK?
  4. Pi Users: Are you willing to devote a separate Pi or at least a separate microSD to the NCS? Are you aware that the device based on it’s form factor dimensions will block 3 USB ports unless you use a cable to go to the NCS dongle?

Question 1 is up to you.

The reason I’m asking question 2 is because Intel is notorious for poor documentation and even discontinuing their products as they did with the Intel Galileo.

I’m not suggesting that either will occur with the NCS. The NCS is in the deep learning domain which is currently heading full steam ahead, so the future of this product does look bright. It also doesn’t hurt that there aren’t too many competing products.

Questions 2 and 3 (and their answers) are related. In short, you can’t isolate the development environments with virtual environments and the installer actually removes previous installations of OpenCV from your system. For this reason you should not get the installer scripts anywhere near your current projects and working environments. I learned the hard way. Trust me.

Hopefully I haven’t scared you off — that is not my intention. Most people will be purchasing the Movidius NCS to pair with a Raspberry Pi or other single board computer.

Question 4 is for Pi users. When it comes to the Pi, if you’ve been following any other tutorials on, you’re aware that I recommend Python virtual environments to isolate your Python projects and associated dependencies. Python virtual environments are a best practice in the Python community.

One of my biggest gripes with the Neural Compute Stick is that Intel’s install scripts will actually make your virtual environments nearly unusable. The installer downloads packages from the Debian/Ubuntu Aptitude repos and changes your PYTHONPATH system variable.

It get really messy real quick and to be on the safe side, you should use a fresh microSD (purchase a 32GB 98MB/s microSD on Amazon) with Raspbian Stretch. You might even buy another Pi to marry to the NCS if you’re working on a deployable project.

When I received my NCS I was excited to plug it into my Pi…but unfortunately I was off to a rough start.

Check out the image below.

I found out that with the NCS plugged in, it blocks all 3 other USB ports on my Pi. I can’t even plug my wireless keyboard/mouse dongle in another port!

Now, I understand that the NCS is meant to be used with devices other than the Raspberry Pi, but given that the Raspberry Pi is one of the most used single board systems, I was a bit surprised that Intel didn’t consider this — perhaps it’s because the device consumes a lot of power and they want you to think twice about plugging in additional peripherals to your Pi.

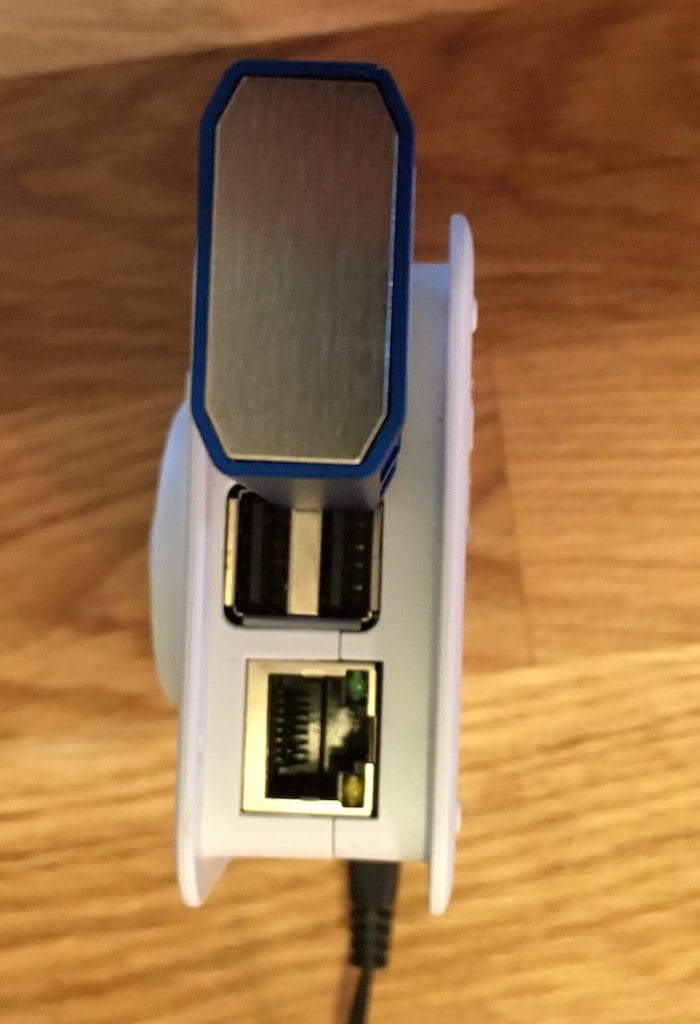

Figure 1: The Intel Movidius NCS blocks the 3 other USB ports from easy access.

This is very frustrating. The solution is to buy a 6in USB 3.0 extension such as this one:

Figure 2: Using a 6in USB extension dongle with the Movidius NCS and Raspberry Pi allows access the other 3 USB ports.

With those considerations in mind, the Movidius NCS is actually a great device at a good value. So let’s dive into the workflow.

Movidius NCS Workflow

Figure 3: The Intel Movidius NCS workflow (image credit: Intel)

Working with the NCS is quite easy once you understand the workflow.

The bottom line is that you need a graph file to deploy to the NCS. This graph file can live in the same directory as your Python script if you’d like — it will get sent to the NCS using the NCS API. I’m including a few graph files with the “Downloads” associated with this blog post.

In general, the workflow of using the NCS is:

  1. Use a pre-trained TensorFlow/Caffe model or train a network with Tensorflow/Caffe on Ubuntu or Debian.
  2. Use the NCS SDK toolchain to generate a graph file.
  3. Deploy the graph file and NCS to your single board computer running a Debian flavor of Linux. I used a Raspberry Pi 3 B running Raspbian (Debian based).
  4. With Python, use the NCS API to send the graph file to the NCS and request predictions on images. Process the prediction results and take an (arbitrary) action based on the results.

Today, we’ll set up the Raspberry Pi in with the NCS API-only mode toolchain. This setup does not include tools to generate graph files, nor does it install Caffe, Tensorflow, etc.

Then, we’ll create our own custom image classification benchmarking script. You’ll notice that this script is based heavily on a previous post on Deep learning with the Raspberry Pi and OpenCV.

First, let’s prepare our Raspberry Pi.

Setting up your Raspberry Pi and the NCS in API-only mode

I learned the hard way that the Raspberry Pi can’t handle the SDK (what was I thinking?) by reading some sparse documentation.

I later started from square one and found better documentation that instructed me to set up my Pi in API-only mode (now this makes sense). I was quickly up and running in this fashion and I’ll show you how to do the same thing.

For your Pi, I recommend that you install the SDK in API-only mode on a fresh installation of Raspbian Stretch.

To install the Raspbian Stretch OS on your Pi, grab the Stretch image here and then flash the card using these instructions.

From there, boot up your Pi and connect to WiFi. You can complete all of the following actions over an SSH connection or using a monitor + keyboard/mouse (with the 6inch dongle listed above as the USB ports are blocked by the NCS) if you prefer.

Let’s update the system:

Then let’s install a bunch of packages:

Notice that we’ve installed libopencv-dev  from the Debian repositories. This is the first time I’m ever recommending it and hopefully the last time as well. Installing OpenCV via apt-get (1) installs an older version of OpenCV, (2) does not install the full version of OpenCV, and (3) does not take advantage of various system operations. Again, I do not recommend this method to installing OpenCV.

Additionally, you can see we’re installing a whole bunch of packages that I generally prefer to manage inside Python virtual environments with pip. Be sure you are using a fresh memory card so you don’t mess up other projects that you’ve been working on, on your Pi.

Since we’re using OpenCV and Python, we’ll need the python-opencv  bindings. The installation instructions on the Movidius blog don’t include this tool. You may install the python-opencv  bindings by entering the following:

Let’s also install imutils and the picamera API:

For the above pip install  commands, I installed into the global Python site-packages (not with a virtual environment).

From there, let’s make a workspace directory and clone the NCSDK:

And while we’re at it, let’s clone down the NC App Zoo as we’ll want it for later.

And from there, navigate into the following directory:

In that directory we’ll use the Makefile to install SDK in API-only mode:

Test the Raspberry Pi installation on the NCS

Let’s test the installation by using code from the NC App Zoo. Be sure that the NCS is plugged into your Pi at this point.

You should see the exact output as above.

Using a pre-compiled graph file

Since we only have the API on our Pi, we’ll have to rely on a pre-generated graph file in order to perform our classification project today. I’ve included the relevant graph files in the “Downloads” section of this blog post.

Next week, I’ll be back to show you how you can generate your own graph files with the full-blown SDK installed on a capable Ubuntu desktop/laptop.

Classification with the Movidius NCS

If you open up the  file that we just created with the Makefile, you’ll notice that most inputs are hardcoded and that the file is ugly in general.

Instead, we’re going to create our own file for classification and benchmarking.

In a previous post, Deep learning on the Raspberry Pi with OpenCV, I described how to use the OpenCV’s DNN module to perform object classification.

Today, we’re going to modify that exact same script to make it compatible with the Movidius NCS.

If you compare both scripts you’ll see that they are nearly identical. For this reason, I’ll simply be pointing out the differences, so I encourage you to refer to the previous post for full explanations.

Each script is included in the “Downloads” section of this blog post, so be sure to grab the zip and follow along.

Let’s review the differences in the modified file named :

Here we are importing our packages — the only difference is on Line 2 where we import the mvncapi as mvnc . This import is for the NCS API.

From there, we need to parse our command line arguments:

In this block I’ve removed two arguments ( --prototxt  and --model ) while adding two arguments ( --graph  and --dim ).

The --graph  argument is the path to our graph file — it takes the place of the prototxt and model.

Graph files can be generated via the NCS SDK, which we’ll cover in next week’s blog post. I’ve included the graph files for this week in the “Downloads for convenience. In the case of Caffe the graph is generated from the prototxt and model files with the SDK.

The --dim  argument simply specifies the pixel dimensions of the (square) image we’ll be sending through the neural network. Dimensions of the image were hardcoded in the previous post.

Next, we’ll load the class labels and input image from disk:

Here we’re loading the class labels from  synset_words.txt  with the same method as previously.

Then, we utilize OpenCV to load the image.

One slight change is that we’re making a copy of the original image on Line 26. We need two copies — one for preprocessing/normalization/classification and one for displaying to our screen later on.

Line 27 resizes our image and you’ll notice that we’re using args["dim"]  — our command line argument value.

Common choices for width and height image dimensions inputted to Convolutional Neural Networks include 32 × 32, 64 × 64, 224 × 224, 227 × 227, 256 × 256, and 299 × 299. Your exact image dimensions will depend on which CNN you are using.

Line 28 converts the image array data to float32  format which is a requirement for the NCS and the graph files we’re working with.

Next, we perform mean subtraction, but we’ll do it in a slightly different way this go around:

We load the ilsvrc_2012_mean.npy  file on Line 31. This comes from the ImageNet Large Scale Visual Recognition Challenge and can be used for SqueezeNet, GoogLeNet, AlexNet, and typically all other networks trained on ImageNet that utilize mean subtraction (we hardcode the path for this reason).

The image mean subtraction is computed on Lines 32-34 (using the same method shown in the Movidius example scripts on GitHub).

From there, we need to establish communication with the NCS and load the graph into the NCS:

As you can tell, the above code block is completely different because last time we didn’t use the NCS at all.

Let’s walk through it — it’s actually very straightforward.

In order to prepare to use a neural network on the NCS we need to perform the following actions:

  1. List all connected NCS devices (Line 38).
  2. Break out of the script altogether if there’s a problem finding one NCS (Lines 41-43).
  3. Select and open device0  (Lines 48 and 49).
  4. Load the graph file into Raspberry Pi memory so that we can transfer it to the NCS with the API (Lines 53 and 54).
  5. Load/allocate the graph on the NCS (Line 58).

The Movidius developers certainly got this right — their API is very easy to use!

In case you missed it above, it is worth noting here that we are loading a pre-trained graph. The training step has already been performed on a more powerful machine and the graph was generated by the NCS SDK. Training your own network is outside the scope of this blog post, but covered in detail in both PyImageSearch Gurus and Deep Learning for Computer Vision with Python.

You’ll recognize the following block if you read the previous post, but you’ll notice three changes:

Here we will classify the image with the NCS and the API.

Using our graph object, we call graph.LoadTensor  to make a prediction and graph.GetResult  to grab the resulting predictions. This is a two-step action, where before we simply called net.forward  on a single line.

We time these actions to compute our benchmark while displaying the result to the terminal just like previously.

We perform our housekeeping duties next by clearing the graph memory and closing the connection to the NCS on Lines 69 and 70.

From there we’ve got one remaining block to display our image to the screen (with a very minor change):

In this block, we draw the highest prediction and probability on the top of the image. We also print the top-5 predictions + probabilities in the terminal.

The very minor change in this block is that we’re drawing the text on image_orig  rather than image .

Finally, we display the output image_orig  on the screen. If you are using SSH to connect with your Raspberry Pi this will only work if you supply the  -X  flag for X11 forwarding when SSH’ing into your Pi.

To see the results of applying deep learning image classification on the Raspberry Pi using the Intel Movidius Neural Compute Stick and Python, proceed to the next section.

Raspberry Pi and deep learning results

For this benchmark, we’re going to compare using the Pi CPU to using the Pi paired with the NCS coprocessor.

Just for fun, I also threw in the results from using my Macbook Pro with and without the NCS (which requires an Ubuntu 16.04 VM that we’ll be building and configuring next week).

We’ll be using three models:

  1. SqueezeNet
  2. GoogLeNet
  3. AlexNet

Just to keep things simple, we’ll be running the classification on the same image each time — a barber chair:

Figure 4: A barber chair in a barbershop is our test input image for deep learning on the Raspberri Pi with the Intel Movidius Neural Compute Stick.

Since the terminal output results are quite long, I’m going to leave them out of the following blocks. Instead, I’ll be sharing a table of the results for easy comparison.

Here are the CPU commands (you can actually run this on your Pi or on your desktop/laptop despite pi  in the filename):

Note:  In order to use the OpenCV DNN module, you must have OpenCV 3.3 at a minimum. You can install an optimized OpenCV 3.3 on your Raspberry Pi using these instructions.

And here are the NCS commands using the new modified script that we just walked through above (you can actually run this on your Pi or on your desktop/laptop despite pi  in the filename):

Note: In order to use the NCS, you must have a Raspberry Pi loaded with a fresh install of Raspbian (Stretch preferably) and the NCS API-only mode toolchain installed as per the instructions in this blog post. Alternatively you may use an Ubuntu machine or VM.

Please pay attention to both Notes above. You’ll need two separate microSD cards to complete these experiments. The NCS API-only mode toolchain uses OpenCV 2.4 and therefore does not have the new DNN module. You cannot use virtual environments with the NCS, so you need completely isolated systems. Do yourself a favor and get a few spare microSD cards — I like the 32 GB 98MB/s cards. Dual booting your Pi might be an option, but I’ve never tried it and don’t want to deal with the hassle of partitioned microSD cards.

Now for the results summarized in a table:

Figure 5: Intel NCS with the Raspberry Pi benchmarks. I compared classification using the Pi CPU and using the Movidius NCS. On ImageNet, the NCS achieves a 395 to 545% speedup.

The NCS is clearly faster on the Pi when compared to using the Pi’s CPU for classification achieving a 6.45x speedup (545%) on GoogLeNet. The NCS is sure to bring noticeable speed to the table on larger networks such as the three compared here.

Note: The results gathered on the Raspberry Pi used my optimized OpenCV install instructions. If you are not using the optimized OpenCV install, you would see speedups in the range of 10-11x!

When comparing execution on my MacBook Pro with Ubuntu VM to the SDK VM on my MBP, performance is worse — this is expected for a number of reasons.

For starters, my MBP has a much more powerful CPU. It turns out that it’s faster to run the full inference on the CPU versus the added overhead of moving the image from the CPU to the NCS and then pulling the results back.

Second, there is USB overhead when conducting USB passthrough to the VM. USB 3 isn’t supported via the VirtualBox USB passthrough either.

It is worth noting that the Raspberry Pi 3 B has USB 2.0. If you really want speed for a single board computer setup, select a machine that supports USB 3.0. The data transfer speeds alone will be apparent if you are benchmarking.

Next week’s results will be even more evident when we compare real-time video FPS benchmarks, so be sure to check back on Monday.

Where to from here?

I’ll be back soon with another blog post to share with you how to generate your own custom graph files for the Movidius NCS.

I’ll also be describing how to perform object detection in realtime video using the Movidius NCS — we’ll benchmark and compare the FPS speedup and I think you’ll be quite impressed.

In the meantime, be sure to check out the Movidius blog and TopCoder Competition.

Movidus blog on GitHub

Intel and Movidius are keeping their blog up to date on GitHub. Be sure to bookmark their page and/or subscribe to RSS:

You might also want to sign into GitHub and click the “watch” button on the Movidius repos:

TopCoder Competition

Figure 5: Earn up to $8,000 with the Movidius NCS on TopCoder.

Are you interested in pushing the limits of the Intel Movidius Neural Compute Stick?

Intel is sponsoring a competition on TopCoder.

There are $20,000 in prizes up for grabs (first place wins $8,000)!

Registration and submission close on February 26, 2018.

Keep track of the leaderboard and standings!


Today we explored Intel’s new Movidius Neural Compute Stick. My goal here today was expose you to this new deep learning device (which we’ll  be using in future blog posts as well). I also demonstrated how to use the NCS workflow and API.

In general, the NCS workflow involes:

  1. Training a network with Tensorflow or Caffe using a machine running Ubuntu/Debian (or using a pre-trained network).
  2. Using the NCS SDK to generate a graph file.
  3. Deploying the graph file and NCS to your single board computer running a Debian flavor of Linux. We used a Raspberry Pi 3 B running Raspbian (Debian based).
  4. Performing inference, classification, object detection, etc.

Today, we skipped Steps 1 and 2. Instead I am providing graph files which you can begin using on your Pi immediately.

Then, we wrote our own classification benchmarking Python script and analyzed the results which demonstrate a significant 10x speedup on the Raspberry Pi.

I’m quite impressed with the NCS capabilities so far — it pairs quite well with the Raspberry Pi and I think it is a great value if (1) you have a use case for it or (2) you just want to hack and tinker.

I hope you enjoyed today’s introductory post on Intel’s new Movidius Neural Compute Stick!

To stay informed about PyImageSearch blog posts, sales, and events such as PyImageConf, be sure to enter your email address in the form below.


If you would like to download the code and images used in this post, please enter your email address in the form below. Not only will you get a .zip of the code, I’ll also send you a FREE 17-page Resource Guide on Computer Vision, OpenCV, and Deep Learning. Inside you'll find my hand-picked tutorials, books, courses, and libraries to help you master CV and DL! Sound good? If so, enter your email address and I’ll send you the code immediately!

, , , , , , , , ,

87 Responses to Getting started with the Intel Movidius Neural Compute Stick

  1. Alexander Sack February 12, 2018 at 10:57 am #

    Adrian, how many custom graphs have you actually tried with the NCS?

    I’ve been an early adopter of this stick and even run it under docker (you have to edit the install process a bit to get it to go but it will work that way quite happily).

    I’ve found that Intel’s support for Tensorflow is woefully lacking, and the procedure you have to do to edit your graph to get it ready to compile is tedious and error prone. My biggest complaint hands down is that you really need to know Caffe to use it effectively (and I’m not a Caffe kinda guy, I prefer hot chocolate) and I have still not being able to do Keras->TF->Caffe-NCS or even PyTorch->Caffe->NCS (though I am still experimenting with the latter).

    • Adrian Rosebrock February 12, 2018 at 4:39 pm #

      Great question, thanks for asking Alexander.

      To be honest, the number of custom graphs I’ve played around with is pretty small (6-7 tops). About half of them required some sort of change to the Caffe prototxt model definition file. I have not tried any TensorFlow models yet.

      I hope Intel decides to support Keras inside their SDK in the future. Trying to train via Keras, export into TensorFlow, and then edit the model graph for the NCS sounds like a rats nest of issues. Even though you’re not a fan of Caffe, it’s likely the easiest way to go from trained model to NCS.

      • Patrick Poirier March 14, 2018 at 8:49 pm #


        Concerning your comment ” Trying to train via Keras, export into TensorFlow, and then edit the model graph for the NCS sounds like a rats nest of issues”

        Have you looked at this:

        It seems pretty straightforward

        Best Regards

        • Adrian Rosebrock March 20, 2018 at 4:44 pm #

          Patrick! Great find. I wish I had come across that before. Have you used this method yet? Thank you for sharing.

  2. Philipp February 12, 2018 at 11:22 am #

    I love the NCS and really liked how easy it was to set up, even for me.
    I am still desperately waiting for the ability to run Tensorflow MobileNets SSD models for Object Detection as this is still not possible…
    Have a custom trained model that is just waiting for it to get on that stick!!

    • Adrian Rosebrock February 12, 2018 at 4:37 pm #

      Hey Philipp — I’ll be covering Caffe SSD + MobileNets on the NCS next week. If I have time I’ll try to get it to work with a TensorFlow SSD + MobileNet. Is there a particular SSD + MobileNet you are trying to work with?

      • Philipp February 13, 2018 at 2:10 pm #

        Oh that would be wonderful!
        Like many others who just got into Object Detection I am working with the SSD Mobilenet V1 Coco (11_06_2017) from the Tensorflow Object Detection Model Zoo
        As far as I know Tensorflow SSD Models are not supported by the NCSDK

  3. Seamus February 12, 2018 at 12:01 pm #

    Thanks Adrian for another great blog. I just bought one for reasons 1 through 4. 🙂

    • Adrian Rosebrock February 12, 2018 at 4:36 pm #

      Enjoy it Seamus, let me know how it works for you 🙂

  4. wally February 12, 2018 at 12:45 pm #

    How does this compare to the Google AIY Vision Kit co-processor board? There are initial issues with the AIY Vision kit too, such that Microcenter gave me my money back, essentially issuing a recall.

    Obvious differences are the AIY kit board inputs direct from a Pi2 camera module and does a pass through to the PiZero camera port — this was the issue as the supplied cable didn’t fit the connector on the AIY board 🙁

    I can afford a $77 “toy” so I will be ordering one and look forward to part 2.

    • Adrian Rosebrock February 12, 2018 at 4:35 pm #

      I have a Google AIY Vision Kit but I haven’t yet played around with it. I’m planning on doing a tutorial on the Google AIY later this month/early next and then I’ll be able to better discuss the differences between the two.

      • Tim U December 2, 2018 at 9:17 pm #

        Any results from your AIY Kit testing?

        • Adrian Rosebrock December 4, 2018 at 9:58 am #

          I honestly still haven’t had a chance to do anything with it.

  5. Sergei February 12, 2018 at 1:09 pm #

    Arr, this morning Ive met this amazing stick, this evening you published manual. Thats the destiny

    • Adrian Rosebrock February 12, 2018 at 4:35 pm #

      I’m glad the post was timely, Sergei! 🙂

  6. Ella February 12, 2018 at 2:17 pm #

    Thank you so much for the amazing post Adrian!!! Would you consider doing another tutorial on chaining multiple NCS’s in the future for video processing?

    • Adrian Rosebrock February 12, 2018 at 4:34 pm #

      I’ll be doing another blog post next week that covers video processing. It doesn’t cover using multiple NCS, but it does help you get started on the video processing route. Be on the look out for it!

  7. Philippe Rivest February 12, 2018 at 3:53 pm #

    Great guide 😀

    Is it complicated to create my own models? For instance a model that classifies musical instruments.

    Thank you

    • Adrian Rosebrock February 12, 2018 at 4:34 pm #

      Keep in mind that the Movidius is currently only supporting Caffe and TensorFlow models. Depending on how complex your model is and any type of special layers you use, it could be non-trivial to convert the model using the Movidius SDK.

      It sounds like you’re interested in studying the basics of deep learning, which by definition, includes training your own models. I have a number of tutorials that cover this on the PyImageSearch blog. You should also take a look at Deep Learning for Computer Vision with Python where discuss deep learning in detail.

      I hope that helps!

  8. simon February 12, 2018 at 7:43 pm #

    Hi, I have the same UBS stick and wonder it is able to run some custom DNN like SSD or YOLO?

    • Adrian Rosebrock February 13, 2018 at 9:32 am #

      Yep! It’s absolutely possible to run SSD and YOLO on the Movidius. I’ll be demonstrating how to use the Movidius for object detection in next week’s post. Stay tuned.

      • Prathamesh July 4, 2019 at 2:09 am #

        May I get a link to this post if you did write ?

        • Adrian Rosebrock July 4, 2019 at 10:09 am #

          I did write it. You can find it here. You can also use the search bar at the top-right of this page to search tutorials on PyImageSearch as well.

  9. Jason Hoffman February 12, 2018 at 9:00 pm #

    Adrian, I had forgotten what a fantastic writer and teacher you are. Every couple of months I check back in and It makes me wish I had a project to put your wisdom to use on. Keep up the great work, doc!

    • Adrian Rosebrock February 13, 2018 at 9:31 am #

      Thank you for the kind words Jason 🙂

  10. Foggy February 14, 2018 at 6:31 am #

    Can this device be used to speed up your home surveilance rpi security cam?

    • Adrian Rosebrock February 15, 2018 at 8:57 am #

      No, the home surveillance Raspberry Pi security cam is not using any deep learning. The Movidius NCS is meant to be used for running networks at a faster speed.

  11. JBeale February 14, 2018 at 10:18 am #

    Looking at one of the Movidius github examples,
    it looks to me like they have some bugs in their code they are trying to work around (and even a typo in the comment explaining it- they mean “non-finite” I think, not “non infinite”):

    # boxes with non infinite (inf, nan, etc) numbers must be ignored
    print(‘box at index: ‘ + str(box_index) + ‘ has nonfinite data, ignoring it’)

    • Adrian Rosebrock February 15, 2018 at 8:57 am #

      Getting the SSD + MobileNet detector to run was a bit of a process. I’ll be discussing it in next weeks post.

  12. kaisar khatak February 14, 2018 at 11:47 pm #

    Adding compute to the PI via USB? Very cool, even despite the USB 2.0 HW constraint. Nvidia TX1/TX2 systems still preferred though…

    Have you tried running the video face matcher from the app zoo? It looks like code depends on opencv 3.3 built from source. Apparently, the NCS supports newer versions of opencv, though I did see “-D BUILD_opencv_cnn_3dobj=OFF \ -D BUILD_opencv_dnn_modern=OFF ” in the script.


    • Adrian Rosebrock February 15, 2018 at 8:59 am #

      I have not tried to run the face matcher. When running the install scripts for the Movidius it forcibly uninstalled previous versions of OpenCV on my system and then installed OpenCV 2.4. Hacking the make script to compile OpenCV 3 instead might be possible but it’s not something I’ve tried.

      The TX1 and TX2 are great devices but they also have a heftier price tag. It’s hard to say which one is “preferable” as they both have their use cases. I would likely recommend on a case-by-case basis rather than saying “always use this one”.

  13. Peter van Lith February 15, 2018 at 11:20 am #

    Hi Adrian.
    While playing around with the Movidius I am running into a problem with the first SqueezeNet example. First of all in the previous block you are using python3, in this one it says python. Isn’t that calling python2 instead of python3?
    When I use python3 it starts executing the make file but fails because it cannot find mvNCProfile. It seems as if the api-only install is missing something or is there perhaps a problem with the PYTHONPATH ?

  14. John Beale February 17, 2018 at 7:46 pm #

    One errata: I followed these instructions from a fresh Raspbian install, but I found there was one item missing. I also had to do: sudo apt-get install python-opencv
    after that, I was able to run the SqueezeNet ‘’ example and see electric guitar 99.12%

    • Adrian Rosebrock February 18, 2018 at 9:40 am #

      Thanks for sharing, John!

  15. Raghvendra February 18, 2018 at 3:01 am #


    Test the Raspberry Pi installation on the NCS was SUCCESS. But after that when I try, Generating your Movidius NCS neural network. It gives me the following error, what did I do wrong?

    making prototxt
    Prototxt file already exists

    making profile
    mvNCProfile deploy.prototxt -s 12
    make: mvNCProfile: Command not found
    Makefile:73: recipe for target 'profile' failed
    make: *** [profile] Error 127

    • Colin February 19, 2018 at 5:41 am #

      I run into the same problem. Looks like we ran into the same problem at the same time.

    • Adrian Rosebrock February 19, 2018 at 8:40 am #

      Hi Raghvendra — I think you are using the Makefile from Movidius. Is that correct? If so, the first message is that the prototxt has already been formatted and created. I’m not sure why the second message says mvNCProfile failed. Which model are you building, and can you include a link to the GitHub page if that’s where it came from?

      • Colin February 19, 2018 at 4:06 pm #

        I’m using the ncappzoo/caffe/SqueezeNet example.

        • Adrian Rosebrock February 22, 2018 at 11:21 am #

          Hi Colin and Raghvendra — you’ll need the full-blown SDK to use the SqueezeNet Makefile. Please refer to this post where the SDK is used to generate graph files.

  16. Sandor Seres February 18, 2018 at 3:47 pm #

    I have tried to move my own, trained network (written in Keras with Tensorflow backend) to the stick (12 layers, plus some Dropout)
    Already find to use, and it seems mostly work .

    But it still have issue with Dropout layers…

    tensorflow.python.framework.errors_impl.InvalidArgumentError: You must feed a value for placeholder tensor 'dropout_5/keras_learning_phase' with dtype bool
    [[Node: dropout_5/keras_learning_phase = Placeholder[dtype=DT_BOOL, shape=, _device="/job:localhost/replica:0/task:0/device:CPU:0"]()]]

    I am thinking what to do?
    – remove the Dropouts from the final model (but how..)
    – retrain the whole model again without Dropout ( +10 hour run on AWS p2.xlarge)

    Anyone had similar problem?

    • David Hoffman February 19, 2018 at 8:26 am #

      Sandor — I find it hard to believe (and quite frustrating) that mvNCCompile doesn’t support dropout regularization (or just doesn’t play nice with it). It appears that other users on the Movidius Forums (such as Yang) have experienced your exact problem. The solution mentioned there is to pass a constant of 1.0 from the dropout nodes. Dropout with the Movidius NCS might be a future blog post idea for Adrian. Report back if you are able to overcome this hurtle.

  17. Ctvr February 19, 2018 at 6:35 pm #

    Oh. It’s amazing!. Based on your article, it can help improving speed when running dnn on raspberry pi. But if i want to work with computer vision such as canny edge, erosion and dilate (with large kernel) ,…, can it improve speed on raspberry pi?

    • Adrian Rosebrock February 22, 2018 at 9:25 am #

      The NCS will not help with basic image processing/computer vision operations. To speedup standard OpenCV functions on the Pi you should compile and install an optimized version of OpenCV.

  18. Raghvendra February 20, 2018 at 12:56 am #

    Hi Adrian,
    Thank you for the reply. I actually replicated all the steps you listed. I tried SqueezeNet and GoogleNet. I did not took anything from Github, i just used the directories available at Caffe examples folder.

    • Adrian Rosebrock February 22, 2018 at 11:27 am #

      Thanks for sharing, Raghvendra!

  19. Graham Wheeler February 22, 2018 at 12:54 pm #

    Is it useful for non-vision tasks? E.g. LSTM nets for text summarization?

    • Adrian Rosebrock February 22, 2018 at 12:58 pm #

      I have not tried it for non-vision tasks, but potentially it could be, provided your model is Caffe/TensorFlow, can be converted to a NCS-compatible model, and you can load your data into it. Again, I would suggest checking the Intel documentation on this one as I’m not entirely sure. Near every example I’ve seen with the NCS is vision related in some capacity.

  20. Hein February 28, 2018 at 12:39 am #

    Hi Adrian,

    I am having this error while installing pip install ‘picamera[array]’ . Could you please help assist?

    • Adrian Rosebrock February 28, 2018 at 1:49 pm #

      Hi Hein — I’m not sure but you might need double quotes. Please refer to the docs.

      • Matt Trask October 11, 2018 at 6:58 pm #

        I had this exact same problem. If you copy and paste the line of text from this blog post, it has a ‘left double quote” symbol before the word picamera. Retyping the line makes it work.

  21. claude March 1, 2018 at 1:51 pm #

    Hello Adrian,

    Thanks a lot for your post.

    I followed your post completely to install MOVIDIUS NCS.

    But , I have some questions:

    1) Why not install the required bunch of packages in a virtual environment, as we are used to with you?

    2) What is the version of opencv and python installed with this bunch of packages ?

    Because after to implement this packages on my RPI3, I have Python 2.7.13 and not python 3 !!!! why ?) and I have openCV version :

    3) Is it possible to up to date opencv and python version with bunch of this packages ?

    4) If not, why ?

    5) Is this the only procedure recommended by Intel to access MOVIDIUS NCS?

    Thanks in advance for your reply.

    Kind regards.


    • David Hoffman March 1, 2018 at 3:06 pm #

      Hi Claude,

      I don’t have a the answer to “why” in general. It’s a software compatibility issue that you’ll have to take up with Intel.

      1) You can try virtual environments, but for compatibility you need to use their install scripts. I was not able to get virtual environments to work.

      2) OpenCV 2.4. Python 2, but I bet if you make the effort, Python 3 will work.

      3) I would not recommend updating OpenCV and Python.

      4) I don’t have a good reason here. What functionality do you need from OpenCV 3 or Python 3 that you can’t do with the previous versions?

      5) As far as I know this is what Intel recommends as of this date. Be sure to follow their blog to know if installation methods change. If that happens, I’m guessing Adrian will update the blog post.

  22. Joakim Byström April 15, 2018 at 4:41 am #

    Hello Adrian,

    doing great projects! But when i try to follow the instructions for Movidius “install some packages” a few of them are not available. Anyone has a solution?

    The errors look like this:

    sudo apt-get install -y libusb-1.0-0-dev libprotobuf-dev

    E: Package ‘libusb-1.0-0-dev’ has no installation candidate
    E: Unable to locate package libprotobuf-dev

    Best wishes, Joakim Byström

  23. Aluizio Rocha April 18, 2018 at 8:24 pm #

    Hi Adrian,

    Thanks a lot for this great post about the Movidius Neural Compute Stick. I have been testing it on a Raspberry Pi Zero W and the results are amazing compared to using its CPU:

    SqueezeNet – CPU: 7.3183 seconds, NCS: 0.11804 seconds, Speedup: 6,099.84%
    GoogLeNet – CPU: 15.28 seconds, NCS: 0.15962 seconds, Speedup: 9,472.73%
    AlexNet – CPU: 20.292 seconds, NCS: 0.12166 seconds, Speedup: 16,759.27%

    For computer vision projects using a tiny Raspberry Pi Zero, the Movidius NCS is well worth it a lot.

    Best regards.

    • Adrian Rosebrock April 20, 2018 at 10:09 am #

      Nice! Thanks so much for sharing these results, Aluizio. I appreciate as does the rest of the PyImageSearch community 🙂

  24. Robin May 1, 2018 at 2:16 am #

    If you could post the code without the $ it would be much easier to copy-paste-use.

    • Adrian Rosebrock May 1, 2018 at 1:22 pm #

      Thanks for the suggestion Robin, however most Unix bash prompts end in a $. I place the $ before all shell commands so that the reader can distinguish between shell commands and stdout.

  25. Aneeq June 13, 2018 at 2:49 pm #

    Thanks a lot for this amazing blog post! Just curious if the tutorial on generating our own graph files is up?

    • Adrian Rosebrock June 15, 2018 at 12:37 pm #

      No, I’ve been busy writing other content. I’d really like to write a tutorial on creating your own graph files but I’m not sure if/when that may be.

  26. Jean-Marie June 14, 2018 at 3:25 pm #

    Hi, following this tutorail and NCS perfectly working for inference but doesn’t display image locally or via ssh :
    downloaded package has been installed on a subfolfer of workspace. Something to do with root perhaps ?

    (terminal output removed due to formatting destroying HTML)

    (Image:548): Gtk-WARNING **: cannot open display:

    Any idea ?

    • Adrian Rosebrock June 15, 2018 at 12:04 pm #

      Make sure you enable X11 forwarding when SSH’ing into the Pi. This will enable the window to open:

      $ ssh -X pi@your_ip_address

  27. Jean-Marie June 14, 2018 at 3:33 pm #

    Another question : following your link (, I install the RASPBIAN STRETCH LITE so doesn’t seem to have X server config that could explain my ‘ Gtk-WARNING **: cannot open display’.

    Must we install the RASPBIAN STRETCH WITH DESKTOP for this NCS tutorial ?

    • Adrian Rosebrock June 18, 2018 at 9:09 am #

      As far as I know, X forwarding will still work even if you have a headless Pi. Just try the -X argument when connecting. Don’t forget that you’ll also need an X application on your own machine such as Xming or Quartz.

  28. Michael June 21, 2018 at 2:31 pm #


    I’m running into an issue with locating 3 packages. I’m getting an error when installing

    sudo apt-get install -y python3-pygraphviz python3-protobuf python3-network

    and will get the following error

    E: Unable to locate package python3-pygraphviz
    E: Unable to locate package python3-protobuf
    E: Unable to locate package python3-network

    I’ve done and apt-get update and upgrade as suggested by others who have seen similiar issues, but still can’t seem to install these packages. Always the same errors. Any suggestions?

    Best regards,


    • Adrian Rosebrock June 25, 2018 at 2:23 pm #

      Hi Michael — which Raspbian OS are you running? I believe when I wrote this blog post, I used Stretch and my hardware was a Pi 3 B (not the 3 B+ as it wasn’t released yet). Also, if you haven’t yet, be sure to refer to the Intel documentation page that I followed when standing up my Pi + Movidius.

  29. Richard September 6, 2018 at 10:20 pm #


    FYI, Movidus have removed the /api/src folders from the ncsdk folder to release them under a different licence, those that should have been created with git clone .


  30. Tuan Anh October 16, 2018 at 11:57 pm #

    Hello Adrian,
    Can I use the NCS for speeding up the image processing progress? I know I have to transfer the image from the CPU to the NCS to process, but I can’t find any examples on the Internet.

    • Adrian Rosebrock October 20, 2018 at 7:59 am #

      No, the NCS is only for running pre-trained neural networks. You cannot “push” computation to it like you would with a traditional GPU.

  31. Andrea November 28, 2018 at 10:22 am #

    Very cool implementation! How long does it take to predict a single frame?

    • Adrian Rosebrock November 30, 2018 at 9:07 am #

      See Figure 5 where I provide benchmark speeds.

  32. Tyler LeCouffe December 9, 2018 at 4:24 pm #

    Apologies if I missed this answer already…my question is, was this tutorial adapted from Intel’s course?

    I haven’t taken it yet but it seems pretty interesting too.. Just wondering if you had any comment/feedback.

    Thanks, Tyler

    • Adrian Rosebrock December 11, 2018 at 12:50 pm #

      I have not tried it with Intel’s course. I may in the future but for the time being I cannot comment on it.

  33. Max December 30, 2018 at 1:59 am #

    Adrian, as you may already know, there’s NCS2 which is not only announced by Intel, but has appeared on the market. Have you got any plans to try it out?

    • Adrian Rosebrock January 2, 2019 at 9:26 am #

      Yes, I will be using it in my upcoming Computer Vision + Raspberry Pi book.

      • Grant February 1, 2019 at 3:38 pm #

        Will these instructions work with the NCS2 and if not, do you plan to come out with new instructions for it?

        • Adrian Rosebrock February 5, 2019 at 9:43 am #

          I’ll be covering the NCS2 inside my upcoming Computer Vision and Raspberry Pi book. That book will include new instructions.

  34. Glen January 31, 2019 at 3:33 pm #

    I would like to see the testing with the newest Compute Stick 2 but expand the testing with using 4 of the Sticks simultaneously via a hub in comparison with the MacBook Pro.

    Adrian, what would you theorize the the results would be?

  35. Navaneeth June 29, 2019 at 8:32 am #

    Hi i’ve installed sdk in my ubuntu but how can i know wheter my NCS is connected or not ? is there any commands ?

  36. Prathamesh July 4, 2019 at 2:17 am #

    2 questions.

    1. Will deeper models such as the faster RCNN based on inception backbone work on the NCS? I see that people are mostly talking about MobileNets and the likes.

    2. You mentioned that installing the OpenVINO SDK/toolkit messes up with existing OpenCV &/or virtual environments. So, is there some way we can get around these lacunas and install the SDK for generating graphs from custom models?



  1. Real-time object detection on the Raspberry Pi with the Movidius NCS - PyImageSearch - February 19, 2018

    […] I’m enjoying your blog and I especially liked last week’s post about image classification with the Intel Movidius NCS. […]

Before you leave a comment...

Hey, Adrian here, author of the PyImageSearch blog. I'd love to hear from you, but before you submit a comment, please follow these guidelines:

  1. If you have a question, read the comments first. You should also search this page (i.e., ctrl + f) for keywords related to your question. It's likely that I have already addressed your question in the comments.
  2. If you are copying and pasting code/terminal output, please don't. Reviewing another programmers’ code is a very time consuming and tedious task, and due to the volume of emails and contact requests I receive, I simply cannot do it.
  3. Be respectful of the space. I put a lot of my own personal time into creating these free weekly tutorials. On average, each tutorial takes me 15-20 hours to put together. I love offering these guides to you and I take pride in the content I create. Therefore, I will not approve comments that include large code blocks/terminal output as it destroys the formatting of the page. Kindly be respectful of this space.
  4. Be patient. I receive 200+ comments and emails per day. Due to spam, and my desire to personally answer as many questions as I can, I hand moderate all new comments (typically once per week). I try to answer as many questions as I can, but I'm only one person. Please don't be offended if I cannot get to your question
  5. Do you need priority support? Consider purchasing one of my books and courses. I place customer questions and emails in a separate, special priority queue and answer them first. If you are a customer of mine you will receive a guaranteed response from me. If there's any time left over, I focus on the community at large and attempt to answer as many of those questions as I possibly can.

Thank you for keeping these guidelines in mind before submitting your comment.

Leave a Reply
