Ubuntu 18.04: How to install OpenCV

In this blog post you will learn how to install OpenCV on Ubuntu 18.04.

In the past, I’ve authored a handful of installation guides for Ubuntu:

The folks at Canonical have been working hard.

On April 26, 2018, they’ve released a new Long Term Support (LTS) version of Ubuntu for the community: Ubuntu 18.04 LTS (Bionic Beaver).

Support for Ubuntu 16.04 LTS continues until April 2021 so rest-assured — you don’t have to upgrade your 16.04 OS to continue working on your image processing projects.

That said, if you want to upgrade to Ubuntu 18.04 and use the latest-and-greatest, I think you’ll be quite pleased with the new changes in Ubuntu 18.04.

Let’s get down to business and install OpenCV with Python 3 bindings.

To learn how to stand up your Ubuntu 18.04 system with OpenCV, just keep reading.

Note: While you won’t see an Ubuntu 17.10 specific guide here on my blog (non-LTS), these instructions may work with 17.10 (you’ll just have to proceed at your own risk).

Ubuntu 18.04: How to install OpenCV

One major change in Ubuntu 18.04 is that they’ve dropped Python 2.7 completely.

You can still install Python 2.7 if-needed, but now Python 3 is the default on the OS.

Given that, this guide supports Python 3. If you need Python 2.7 support, read this entire guide first and then check the first question of the Troubleshooting your install (FAQ) section near the bottom of this blog post for some Python 2.7 pointers.

Step #0: Get comfortable — you’ll be using Python 3.6

Let’s familiarize ourselves with Python 3 on Ubuntu 18.04.

To run Python 3 on Ubuntu 18.04, you must call python3  explicitly.

Let’s see which version is installed on our system:

And now, let’s launch a Python 3 shell just to test the waters:

That’s easy enough, so let’s get on with installing OpenCV on Ubuntu 18.04.

Step #1: Install OpenCV dependencies on Ubuntu 18.04

All steps today will be accomplished in the terminal/command line. Before we begin, open a terminal or connect via SSH.

From there, we need to refresh/upgrade the pre-installed packages/libraries with the apt-get package manager:

Followed by installing developer tools:

You most likely already have pkg-config  installed on Ubuntu 18.04, but be sure to include it in the install command for sanity.

Next, we need to install some OpenCV-specific prerequisites. OpenCV is an image processing/computer vision library and therefore it needs to be able to load standard image file formats such as JPEG, PNG, TIFF, etc. The following image I/O packages will allow OpenCV to work with image files:

Similarly, let’s include video I/O packages as we often work with video on the PyImageSearch blog. You’ll need the following packages so you can work with your camera stream and process video files:

OpenCV’s highgui module relies on the GTK library for GUI operations. The highgui module will allow you to create elementary GUIs which display images, handle kepresses/mouse clicks, and create sliders and trackbars. Advanced GUIs should be built with TK, Wx, or QT. See this blog post to learn how to make an OpenCV GUI with TK.

Let’s install GTK:

I always recommend the following two libraries which will optimize various OpenCV functions:

And finally, our last requirement is to install Python 3 headers and libraries:

Step #2: Download the official OpenCV source

At the time of this writing, the most recent release is OpenCV 3.4.1. These instructions should continue to work with future OpenCV 3.x versions as well.

Since we’re continuing to work in the terminal, let’s download the official OpenCV release using wget :

Followed by the opencv_contrib  module:

Note: If your browser is cutting off the full command either use the “<>” button in the toolbar above to expand the code block or copy and paste the following URL: https://github.com/opencv/opencv_contrib/archive/3.4.1.zip

So, what’s the contrib repo?

The contrib repository contains algorithms such as SIFT, SURF, and others. In the past, these implementations were included in the default installation of OpenCV 2.4; however, they were moved beginning with OpenCV 3+.

Modules that are actively being developed and/or modules that are patented (not free for commercial/industry use) are included in the contrib module. SIFT and SURF fall into this category. You can learn more about the thought process behind this move in the following blog post: Where did SIFT and SURF go in OpenCV 3?

Important: Both opencv  and opencv_contrib  versions mush be identical. Notice that both URLs point to 3.4.1. Feel free to install a different version while still using this guide — just be sure to update both URLs.

Now, let’s unzip the archives:

Figure 1: After downloading and unzipping opencv and opencv_contrib, our home directory listing should look similar to what is displayed in the terminal.

Step #3: Configure your Python 3 environment

The first step we’re taking to configure our Python 3 development environment is to install pip, a Python Package Manager.

To install pip, simply enter the following in your terminal:

Making use of virtual environments for Python development

If you are familiar with my blog and install guides therein, the following statement might make me sound like a broken record but I’ll repeat it anyway:

I use both virtualenv and virtualenvwrapper daily and you should too unless you have a very specific reason not to. These two Python packages facilitate creating independent Python environments for your projects.

It is a best practice to use virtual environments.

Why?

Virtual environments allow you to work on your projects in isolation without spinning up resource hogs such as VMs and Docker images (I definitely do use both VirtualBox and Docker — they have their place).

For example, maybe you have a Python + OpenCV project that requires an older version of scikit-learn (v0.14) but you want to keep using the latest version of scikit-learn (0.19) for all of your newer projects.

Using virtual environments, you could handle these two software version dependencies separately, something that is not possible using just the system install of Python.

If you would like more information about Python virtual environments take a look at this article on RealPython or read the first half of the this blog post on PyImageSearch.

Let’s go ahead and install   virtualenv  and virtualenvwrapper  now:

To finish the install we need to update our  ~/.bashrc  file.

Using a terminal text editor such as vi / vim  or nano , add the following lines to your ~/.bashrc :

Alternatively, you can append the lines directly via bash commands:

Next, source the ~/.bashrc  file:

Creating a virtual environment to hold OpenCV and additional packages

Ok, while that may have seemed like a lot of work, we’re at the point where we can create your Python 3 virtual environment for OpenCV:

This line simply creates a Python 3 virtual environment named cv . You can name your environment(s) whatever you’d like — I like to keep them short and sweet while also providing enough information so I’ll remember what they are for. You can have as many virtual environments on your system as you’d like!

Let’s verify that we’re in the cv environment by using the workon command:

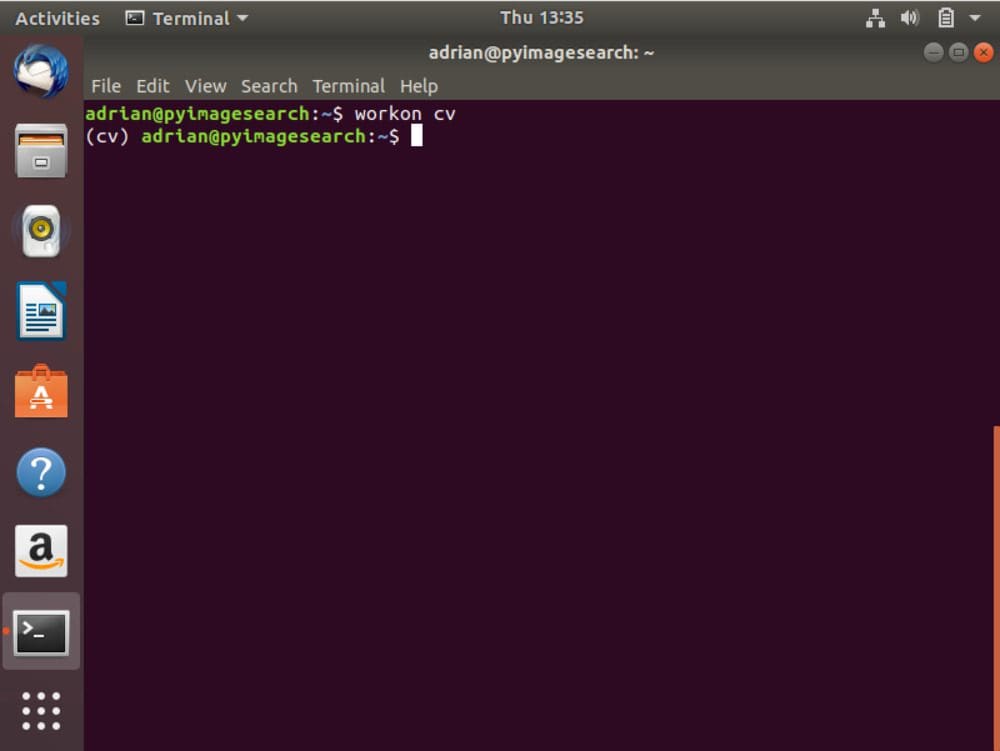

Figure 2 shows what your terminal will look like (assuming you haven’t changed any bash prompt settings):

Figure 2: If you see the (cv) at the beginning of the bash prompt, then your virtual environment is active and you’re working “inside” the environment. You can now safely install OpenCV with correct Python bindings.

Install NumPy in your environment

Let’s install our first package into the environment: NumPy. NumPy is a requirement for working with Python and OpenCV. We simply use pip (while the cv  Python virtual environment is active):

Step #4: Configure and compile OpenCV for Ubuntu 18.04

Now we’re moving. We’re ready to compile and install OpenCV.

Before we begin though, let’s ensure that we’re in the cv virtual environment:

It is very important that the virtual environment is active (you are “inside” the virtual environment) which is why I keep reiterating it. If you are not in the cv  Python virtual environment before moving on to the next step your build files will not be generated properly.

Configure OpenCV with CMake

Let’s set up our OpenCV build using cmake :

I always recommend that you scroll through the CMake output and check to see if anything looks out of the ordinary. You won’t see a “YES” marked next to every setting — that is normal. Be sure you don’t see any errors or your compile may fail (warnings are okay).

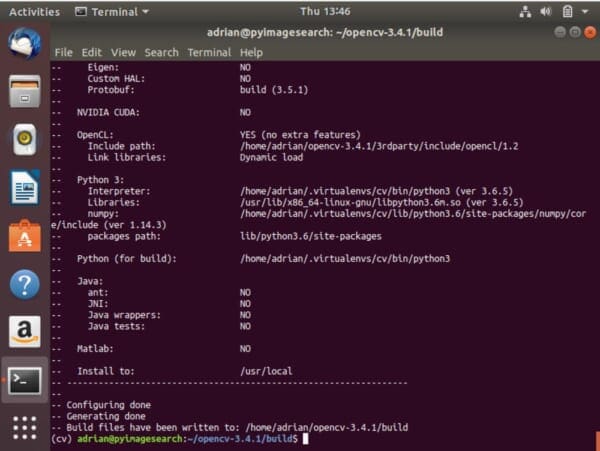

Figure 3: To compile OpenCV for Ubuntu 18.04, we make use of CMake. The CMake tool will configure settings prior to compilation.

Take a moment to notice that only “Python 3” section is shown in the CMake output on Ubuntu 18.04 in Figure 3. This is by design as we are only compiling OpenCV with Python 3 support.

Note: If you are encountering problems related to stdlib.h: No such file or directory  during either the cmake  or make  phase of this tutorial you’ll also need to include the following option to CMake:   -D ENABLE_PRECOMPILED_HEADERS=OFF . In this case I would suggest deleting your build directory, re-creating it, and then re-running cmake  with the above option included. This will resolve the stdlib.h  error.

Compiling OpenCV on Ubuntu 18.04

Let’s compile OpenCV using make .

Depending on the number of processors/cores, you may be able to reduce compile time by altering the flag in the command. My computer has 4 cores, so I am using the -j4  flag. You can update the numeral or leave the flag off altogether:

Figure 4: To compile OpenCV with Python 3 on Ubuntu 18.04, we use make. Using make compiles OpenCV from source and is preferred over using package managers for installing OpenCV.

This process may take 30 minutes or longer, so go for a nice walk if you are able.

If your compile chokes and hangs, it may be due to a threading race condition. In the event you run into this problem, simply delete your build  directory, recreate it, and re-run cmake  and make . This time do not include the flag next to make .

Installing and verifying OpenCV

Upon a successful, 100% complete compile you can now install OpenCV:

To verify the install, sometimes I like to enter the following command in the terminal:

Step #5: Finish your Python+ OpenCV + Ubuntu 18.04 install

We’ve reached the last lap of the race so stick with it.

At this point, your Python 3 bindings for OpenCV should reside in the following folder:

Let’s rename them to simply cv2.so :

Our last step is to sym-link our OpenCV cv2.so  bindings into our cv  virtual environment:

Step #6: Testing your OpenCV install on Ubuntu 18.04

The race is done, but let’s verify that we’re firing on all cylinders.

To verify that our OpenCV + Ubuntu install is complete, I like to launch Python, import OpenCV, and query for the version (this is useful for sanity if you have multiple versions of OpenCV installed as well):

Here’s what it looks like on my system:

Figure 5: To verify that OpenCV is correctly installed and configured in our Python 3 virtual environment, I like to run the Python interpreter in the terminal. From there you can import OpenCV (cv2) and verify the version number matches what you intended to install.

Optionally, at this point, you can safely delete the zips and directories in your home folder:

Troubleshooting your install (FAQ)

In this section, I address some of the common questions, problems, and issues that arise when installing OpenCV 3 with Python 3 on Ubuntu 18.04 LTS.

Q. Where is Python 2.7 on Ubuntu 18.04?

A. Python 3 is the default and what comes with Ubuntu 18.04. Python 2.7 users can manually install Python 2.7 at the end of Step #1:

From there, when you create your virtual environment in Step #3, first install pip for Python 2.7:

And then (also in Step #3) when you make your virtual environment, simply use the relevant Python version flag:

From there everything should be the same.

Q. Why can’t I just pip to install OpenCV?

A. There are a number of pip-installable versions of OpenCV available depending on your operating system and architecture. The problem you may run into is that they may be compiled without various optimizations, image I/O support, video I/O support, and opencv_contrib  support. Use them — but use them at your own risk. This tutorial is meant to give you the full install of OpenCV on Ubuntu 18.04 while giving you complete control over the compile.

Q. When I execute mkvirtualenv  or workon , I encounter a “command not found error”.

A. There a number of reasons why you would be seeing this error message, all of come from to Step #3:

  1. First, make sure you have installed virtualenv  and virtualenvwrapper  properly using the pip  package manager. Verify by running pip freeze , and ensure that you see both virtualenv  and virtualenvwrapper  in the list of installed packages.
  2. Your ~/.bashrc  file may have mistakes. View the contents of your ~/.bashrc  file to see the proper export  and source  commands are present (check Step #3 for the commands that should be appended to ~/.bashrc ).
  3. You may have forgotten to source  your ~/.bashrc . Make sure you run  source ~/.bashrc  after editing it to ensure you have access to the mkvirtualenv  and workon  commands.

Q. When I open a new terminal, logout, or reboot my Ubuntu system, I cannot execute the mkvirtualenv  or workon  commands.

A. See #2 from the previous question.

Q. When I try to import OpenCV, I encounter this message:  Import Error: No module named cv2 .

A. There are multiple reasons this could be happening and unfortunately, it is hard to diagnose. I recommend the following suggestions to help diagnose and resolve the error:

  1. Make sure your  cv  virtual environment is active by using the workon cv  command. If this command gives you an error, then see the first question in this FAQ.
  2. Try investigating the contents of the site-packages  directory in your cv  virtual environment. You can find the site-packages  directory in ~/.virtualenvs/cv/lib/python3.6/site-packages/  depending on your Python version. Make sure (1) there is a cv2.so  file in the  site-packages  directory and (2) it’s properly sym-linked to a valid file.
  3. Be sure to check the site-packages  (and even dist-packages ) directory for the system install of Python located in /usr/local/lib/python3.6/site-packages/ , respectively. Ideally, you should have a cv2.so  file there.
  4. As a last resort, check in your build/lib  directory of your OpenCV build. There should be a cv2.so  file there (if both cmake  and make  executed without error). If the cv2.so  file is present, manually copy it into both the system site-packages  directory as well as the site-packages  directory for the cv  virtual environment.

What’s possible with OpenCV?

The possibilities with OpenCV are truly endless.

Perhaps you’re interested in tracking object movement:

Figure 6: We can use OpenCV to track the motion of objects in real time!

Or maybe you’d like to use OpenCV + deep learning to detect faces in images/video? Trust me, it’s easier than it sounds!

Figure 7: Detecting faces in realtime with OpenCV is easier than it sounds.

Or maybe you’re looking for a beginner-level book, designed for newcomers to the world of computer vision?

If so, look no further than my book, Practical Python and OpenCV + Case Studies.

Figure 8: Practical Python and OpenCV + Case Studies is a book meant for beginners but it is also useful for those that want to solidify their knowledge of the fundamentals. Be sure to give it a read!

Inside this book you’ll:

  • Master the fundamentals of computer vision and image processing, taught on a fun, hands-on manner.
  • Learn by doing, including visual examples and lots of code (including line-by-line reviews, ensuring you understand exactly what’s going on).
  • Implement case studies, including face detection, object trackinghandwriting recognition, and more!

To learn more about the book (and how it can help you learn computer vision + OpenCV), just click here!

Summary

Today we installed OpenCV 3 with Python 3 bindings on Ubuntu 18.04 LTS.

I hope you found these instructions helpful on getting your own Ubuntu 18.04 machine configured with OpenCV 3.

If you’re interested in learning more about OpenCV, computer vision, and image processing, be sure to enter your email address in the form below to be notified when new blog posts + tutorials are published!

, , , ,
