In this tutorial, you will learn how to crop images using OpenCV.
As the name suggests, cropping is the act of selecting and extracting the Region of Interest (or simply, ROI) and is the part of the image in which we are interested.
For instance, in a face detection application, we may want to crop the face from an image. And if we were developing a Python script to recognize dogs in images, we may want to crop the dog from the image once we have found it.
We already utilized cropping in our tutorial, Getting and setting pixels with OpenCV, but we’ll review it again for more completeness.
To learn how to crop images with OpenCV, just keep reading.
Crop Image with OpenCV
In the first part of this tutorial, we’ll discuss how we represent OpenCV images as NumPy arrays. Since each image is a NumPy array, we can leverage NumPy array slicing to crop an image.
From there, we’ll configure our development environments and review our project directory structure.
I’ll then demonstrate how simple it is to crop images with OpenCV!

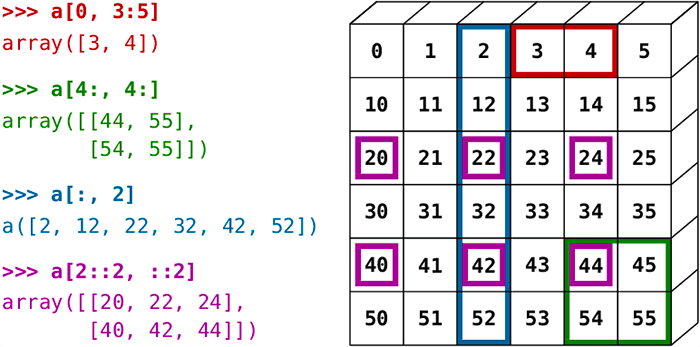

Understanding image cropping with OpenCV and NumPy array slicing
When we crop an image, we want to remove the outer parts of the image we are not interested in. We commonly refer to this process as selecting our Region of Interest, or more simply, our ROI.
We can accomplish image cropping by using NumPy array slicing.
Let’s start by initializing a NumPy list with values ranging from [0, 24]:
>>> import numpy as np >>> I = np.arange(0, 25) >>> I array([ 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24]) >>>
And let’s now reshape this 1D list into a 2D matrix, pretending that it is an image:
>>> I = I.reshape((5, 5)) >>> I array([[ 0, 1, 2, 3, 4], [ 5, 6, 7, 8, 9], [10, 11, 12, 13, 14], [15, 16, 17, 18, 19], [20, 21, 22, 23, 24]]) >>>
Now, let’s suppose I want to extract the “pixels” starting at x = 0, y = 0 and ending at x = 2, y = 3. Doing so can be accomplished using the following code:
>>> I[0:3, 0:2] array([[ 0, 1], [ 5, 6], [10, 11]]) >>>
Notice how we have extracted three rows (y = 3) and two columns (x = 2).
Now, let’s extract the pixels starting at x = 1, y = 3 and ending at x = 5 and y = 5:
>>> I[3:5, 1:5] array([[16, 17, 18, 19], [21, 22, 23, 24]]) >>>
This result provides the final two rows of the image, minus the first column.
Are you noticing a pattern here?
When applying NumPy array slicing to images, we extract the ROI using the following syntax:
roi = image[startY:endY, startX:endX]
startY:endY slice provides our rows (since the y-axis is our number of rows) while
startX:endX provides our columns (since the x-axis is the number of columns) in the image. Take a second now to convince yourself that the above statement is true.
But if you’re a bit more confused and need more convincing, don’t worry! I’ll show you some code examples later in this guide to make image cropping with OpenCV more clear and concrete for you.
Configuring your development environment
To follow this guide, you need to have the OpenCV library installed on your system.
Luckily, OpenCV is pip-installable:
$ pip install opencv-contrib-python
If you need help configuring your development environment for OpenCV, I highly recommend that you read my pip install OpenCV guide — it will have you up and running in a matter of minutes.
Having problems configuring your development environment?
All that said, are you:
- Short on time?
- Learning on your employer’s administratively locked system?
- Wanting to skip the hassle of fighting with the command line, package managers, and virtual environments?
- Ready to run the code right now on your Windows, macOS, or Linux system?
Then join PyImageSearch Plus today!
Gain access to Jupyter Notebooks for this tutorial and other PyImageSearch guides that are pre-configured to run on Google Colab’s ecosystem right in your web browser! No installation required.
And best of all, these Jupyter Notebooks will run on Windows, macOS, and Linux!
Before we can implement image cropping with OpenCV, let’s first review our project directory structure.
Start by using the “Downloads” section of this guide to access the source code and example images:
$ tree . --dirsfirst . ├── adrian.png └── opencv_crop.py 0 directories, 2 files
We only have a single Python script to review today,
opencv_crop.py, which will load the input
adrian.png image from disk and then crop out the face and body from the image using NumPy array slicing.
Implementing image cropping with OpenCV
We are now ready to implement image cropping with OpenCV.
opencv_crop.py file in your project directory structure and insert the following code:
# import the necessary packages import argparse import cv2 # construct the argument parser and parse the arguments ap = argparse.ArgumentParser() ap.add_argument("-i", "--image", type=str, default="adrian.png", help="path to the input image") args = vars(ap.parse_args())
Lines 2 and 3 import our required Python packages while Lines 6-9 parse our command line arguments.
We only need one command line argument,
--image, which is the path to the input image we wish to crop. For this example, we’ll default the
--image switch to the
adrian.png file in our project directory.
Next, let’s load our image from disk:
# load the input image and display it to our screen image = cv2.imread(args["image"]) cv2.imshow("Original", image) # cropping an image with OpenCV is accomplished via simple NumPy # array slices in startY:endY, startX:endX order -- here we are # cropping the face from the image (these coordinates were # determined using photo editing software such as Photoshop, # GIMP, Paint, etc.) face = image[85:250, 85:220] cv2.imshow("Face", face) cv2.waitKey(0)

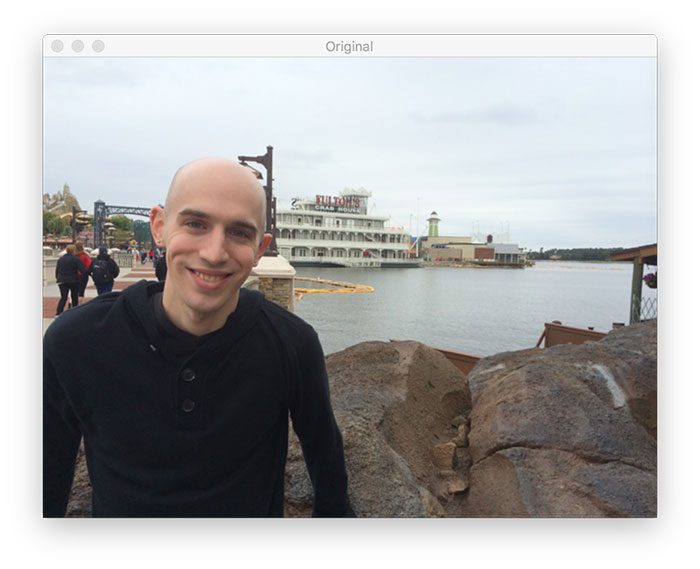

Lines 12 and 13 load our original
image and then display it to our screen:
Our goal here is to extract my face and body from the region using simple cropping methods.
We would normally apply object detection techniques to detect my face and body in the image. However, since we are still relatively early in our OpenCV education course, we will use our a priori knowledge of the image and manually supply the NumPy array slices where the body and face reside.
Again, we can, of course, use object detection methods to detect and extract faces from images automatically, but for the time being, let’s keep things simple.
We extract my face from the image on a single line of code (Line 20).
We are supplying NumPy array slices to extract a rectangular region of the image, starting at (85, 85) and ending at (220, 250).
The order in which we supply the indexes to the crop may seem counterintuitive; however, remember that OpenCV represents images as NumPy arrays with the height first (# of rows) and the width second (# of columns).
To perform our cropping, NumPy expects four indexes:
- Start y: The starting y-coordinate. In this case, we start at y = 85.
- End y: The ending y-coordinate. We will end our crop at y = 250.
- Start x: The starting x-coordinate of the slice. We start the crop at x = 85.
- End x: The ending x-axis coordinate of the slice. Our slice ends at x = 220.

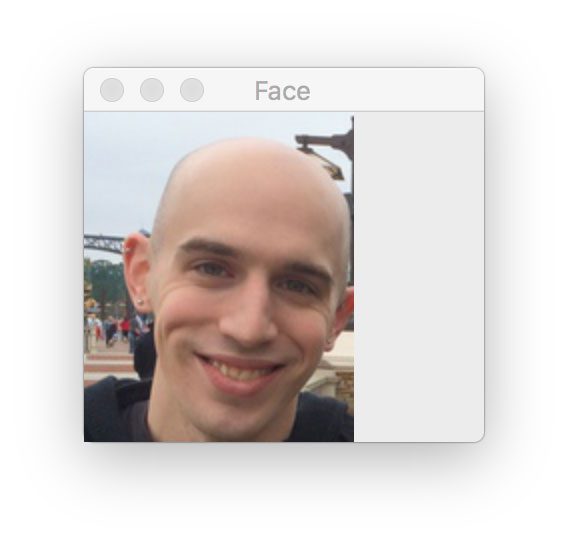

We can see the result of cropping my face below:
Similarly, we can crop my body from the image:
# apply another image crop, this time extracting the body body = image[90:450, 0:290] cv2.imshow("Body", body) cv2.waitKey(0)
Cropping my body is accomplished by starting the crop from coordinates (0, 90) and ending at (290, 450) of the original image.

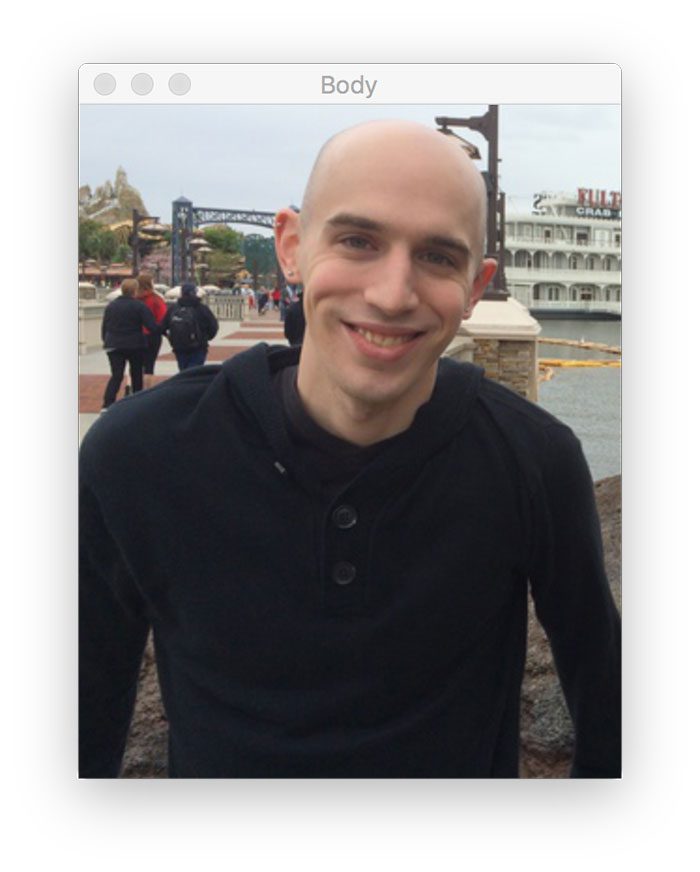

Below you can see the output of cropping with OpenCV:
While simple, cropping is an extremely important skill that we will utilize throughout this series. If you are still feeling uneasy with cropping, definitely take the time to practice now and hone your skills. From here on, cropping will be an assumed skill that you will need to understand!
OpenCV image cropping results
To crop images with OpenCV, be sure you have gone to the “Downloads” section of this tutorial to access the source code and example images.
From there, open a shell and execute the following command:
$ python opencv_crop.py
Your cropping output should match mine from the previous section.
Would you like to learn how to successfully and confidently apply OpenCV to your projects?
Are you worried that configuring your development environment for Computer Vision, Deep Learning, and OpenCV will be too challenging, resulting in confusing, hard to debug error messages?
Concerned that you’ll get lost sifting through endless tutorials and video guides on your own as you struggle to master Computer Vision?
Great, because I’ve got you covered. PyImageSearch University is your chance to learn from me at your own pace.
You’ll find everything you need to master the basics (like we did together in this tutorial) and move on to advanced concepts.
Don’t worry about your operating system or development environment. I’ve got you covered with pre-configured Jupyter Notebooks in Google Colab for every tutorial on PyImageSearch, including Jupyter Notebooks for our new weekly tutorials as well!
Best of all, these Jupyter Notebooks will run on your machine, regardless of whether you are using Windows, macOS, or Linux! Irrespective of the operating system used, you will still be able to follow along and run the code in every lesson (all inside the convenience of your web browser).
Additionally, you can massively accelerate your progress by watching our video lessons accompanying each post. Every lesson in PyImageSearch University includes a detailed, step-by-step video guide.
You may feel that learning Computer Vision, Deep Learning, and OpenCV is too hard. Don’t worry; I’ll guide you gradually through each lecture and topic, so we build a solid foundation, and you grasp all the content.
When you think about it, PyImageSearch University is almost an unfair advantage compared to self-guided learning. You’ll learn more efficiently and master Computer Vision faster.
Oh, and did I mention you’ll also receive Certificates of Completion as you progress through each course at PyImageSearch University?
I’m sure PyImageSearch University will help you master OpenCV drawing and all the other computer vision skills you will need. Why not join today?
In this tutorial, you learned how to crop an image using OpenCV. Since OpenCV represents images as NumPy arrays, cropping is as simple as supplying the crop’s starting and ending ranges as a NumPy array slice.
All you need to do is remember the following syntax:
cropped = image[startY:endY, startX:endX]
As long as you remember the order in which to supply the starting and ending (x, y)-coordinates, cropping images with OpenCV is a breeze!
